C61-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | for 2" Hose ID

Name: C61-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | for 2" Hose ID
Brand: Kurt Hydraulics
SKU: C61-32-32-JJ Kurt
Price: 95.44 USD
Availability: InStock

Save $63.63

$159.07

$159.07 - $159.07

$159.07

$95.44

$95.44 - $95.44

$95.44

by Kurt Hydraulics
C61-JJ - Code 61 Flange Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C61-32-32-JJ Kurt
Series:	JJ Series
Shape (Orientation):	Straight
Ends Configuration:	2in Hose Barb, 2in Code 61 Flange

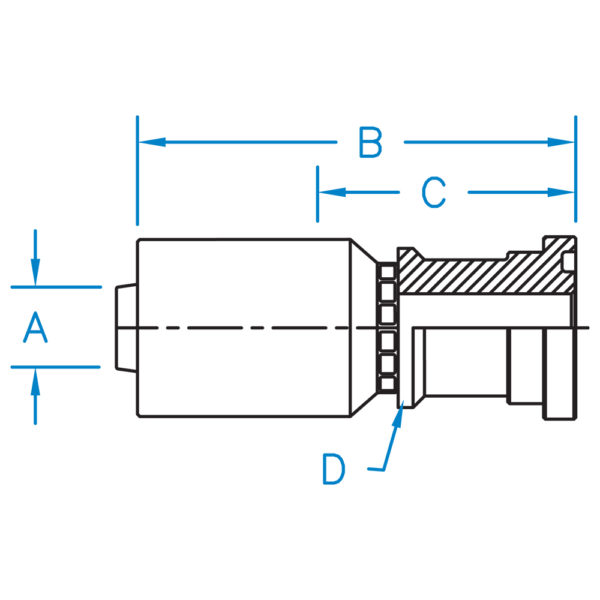

Part Number	A	B	C	D	Hose ID (In)	Thread
C61-20-20-JJ	1.250	4.664	2.064	1-3/4R	1-1/4"	N/A
C61-24-24-JJ	1.500	4.820	2.110	2-1/8R	1-1/2"	N/A
C61-24-32-JJ	1.500	5.444	2.734	2-1/8R	1-1/2"	N/A
C61-32-32-JJ	2.000	6.631	2.861	2-3/4R	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
