C6122-20-20-W by Kurt Hydraulics | Code 61 Flange | 22° Elbow | for 1 1/4" Hose ID

C6122-20-20-W by Kurt Hydraulics | Code 61 Flange | 22° Elbow | for 1 1/4" Hose ID

Save $41.55 Save $41.55
$103.88
$103.88 - $103.88
$103.88
$62.33
$62.33 - $62.33
$62.33

by Kurt Hydraulics
C6122-W - Code 61 Flange 22 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C6122-20-20-W Kurt
Series: W Series
Shape (Orientation): 22 Degree
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Code 61 Flange

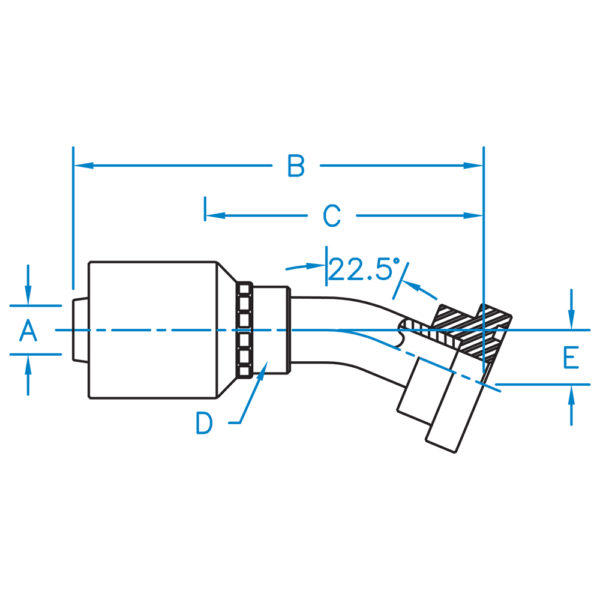

Part Number A B C D E Hose ID
(In)		 Thread
C6122-12-12-W 0.750 4.590 2.800 1.0R 0.490 3/4" N/A
C6122-12-16-W 0.750 4.590 2.800 1.0R 0.490 3/4" N/A
C6122-16-16-W 1.000 4.970 2.860 1-5/16R 0.500 1.000" N/A
C6122-16-20-W 1.000 4.970 2.860 1-5/16R 0.500 1.000" N/A
C6122-20-20-W 1.250 5.390 2.940 1-5/8R 0.550 1-1/4" N/A
C6122-20-24-W 1.250 5.460 3.000 1-5/8R 0.500 1-1/4" N/A
C6122-24-24-W 1.500 6.610 4.010 2.0R 0.680 1-1/2" N/A
C6122-32-32-W 2.000 8.00 4.750 2-1/2R 0.920 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
