C6122-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 22° Elbow | for 1-1/2" Hose ID

Name: C6122-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 22° Elbow | for 1-1/2" Hose ID
Brand: Kurt Hydraulics
SKU: C6122-24-24-JJ Kurt
Price: 98.39 USD
Availability: InStock

Save $65.59

$163.98

$163.98 - $163.98

$163.98

$98.39

$98.39 - $98.39

$98.39

by Kurt Hydraulics
C6122-JJ - Code 61 Flange 22 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6122-24-24-JJ Kurt
Series:	JJ Series
Shape (Orientation):	22 Degree
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Code 61 Flange

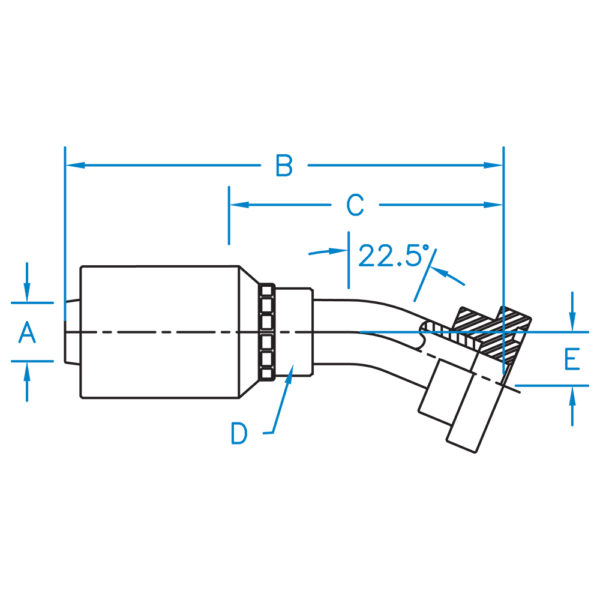

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6122-20-20-JJ	1.250	5.870	3.270	1-3/4R	0.477	1-1/4"	N/A
C6122-24-24-JJ	1.500	6.898	4.188	2-4/8R	0.670	1-1/2"	N/A
C6122-24-32-JJ	1.500	6.898	4.188	2-1/8R	0.676	1-1/2"	N/A
C6122-32-32-JJ	2.000	8.680	4.880	2-3/4R	0.970	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
