C6145-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 61 Flange | 45° Elbow | for 1" Hose ID

Name: C6145-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 61 Flange | 45° Elbow | for 1" Hose ID
Brand: Kurt Hydraulics
SKU: C6145-16-16-WHP Kurt
Price: 52.21 USD
Availability: InStock

Save $34.81

$87.02

$87.02 - $87.02

$87.02

$52.21

$52.21 - $52.21

$52.21

by Kurt Hydraulics
C6145-WHP - Code 61 Flange 45 deg. Bent Tube Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6145-16-16-WHP Kurt
Series:	WHP Series
Shape (Orientation):	45 Degree
Ends Configuration:	1in Hose Barb, 1in Code 61 Flange

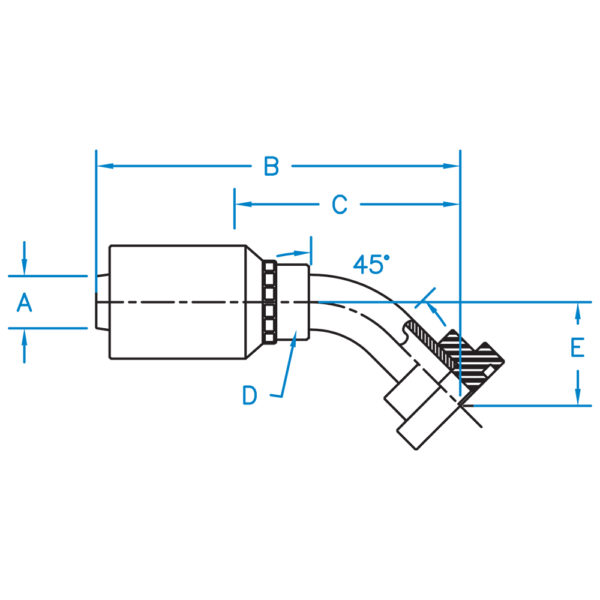

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6145-12-12-WHP	0.750	5.200	2.770	1-3/16R	0.860	3/4"	N/A
C6145-16-16-WHP	1.000	5.349	2.819	1-7/16R	1.130	1.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
