C6160-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 60° Elbow | for 1-1/2" Hose ID

Name: C6160-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 60° Elbow | for 1-1/2" Hose ID
Brand: Kurt Hydraulics
SKU: C6160-24-24-JJ Kurt
Price: 88.4 USD
Availability: InStock

Save $58.93

$147.33

$147.33 - $147.33

$147.33

$88.40

$88.40 - $88.40

$88.40

by Kurt Hydraulics
C6160-JJ - Code 61 Flange 60 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6160-24-24-JJ Kurt
Series:	JJ Series
Shape (Orientation):	60 Degree
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Code 61 Flange

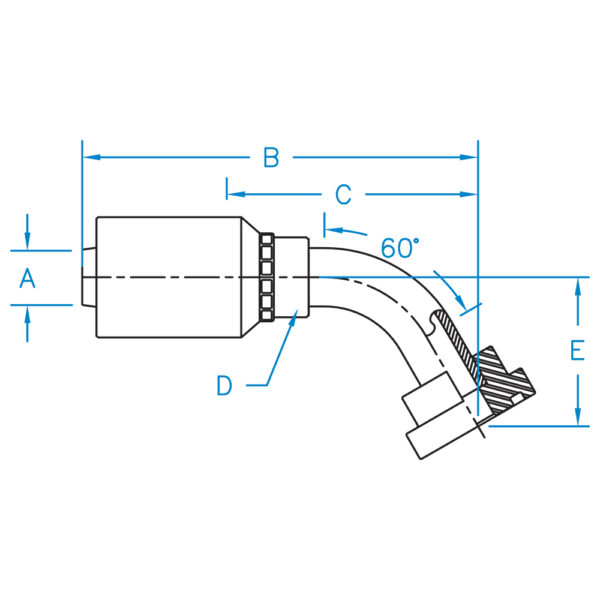

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6160-20-20-JJ	1.250	6.924	4.324	1-3/4R	1.714	1-1/4"	N/A
C6160-24-24-JJ	1.500	7.59	4.95	2-1/8R	2.14	1-1/2"	N/A
C6160-24-32-JJ	1.500	7.610	5.090	2-1/8R	2.320	1-1/2"	N/A
C6160-32-32-JJ	2.000	9.350	5.770	2-3/4R	3.120	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
