C6160-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 60° Elbow | for 2" Hose ID

C6160-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 60° Elbow | for 2" Hose ID

Save $87.35 Save $87.35
$218.38
$218.38 - $218.38
$218.38
$131.03
$131.03 - $131.03
$131.03

by Kurt Hydraulics
C6160-JJ - Code 61 Flange 60 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C6160-32-32-JJ Kurt
Series: JJ Series
Shape (Orientation): 60 Degree
Ends Configuration: 2in Hose Barb, 2in Code 61 Flange

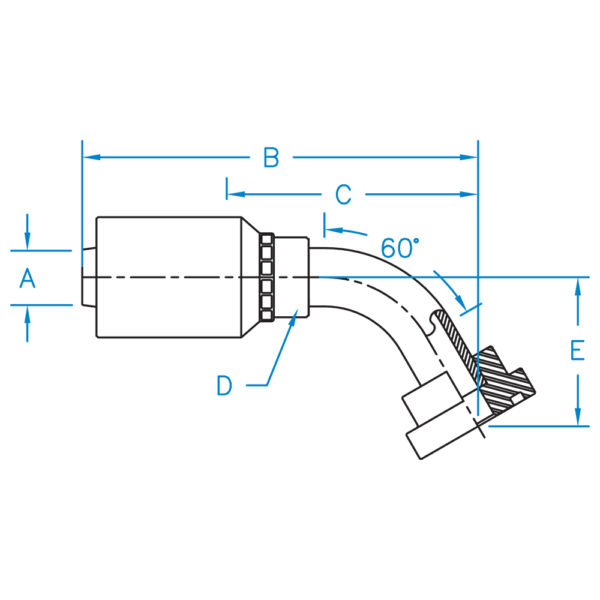

Part Number A B C D E Hose ID
(In)		 Thread
C6160-20-20-JJ 1.250 6.924 4.324 1-3/4R 1.714 1-1/4" N/A
C6160-24-24-JJ 1.500 7.59 4.95 2-1/8R 2.14 1-1/2" N/A
C6160-24-32-JJ 1.500 7.610 5.090 2-1/8R 2.320 1-1/2" N/A
C6160-32-32-JJ 2.000 9.350 5.770 2-3/4R 3.120 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
