C6167-24-32-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | Code 61 Flange | 67° Elbow | for 1-1/2" Hose ID

Save $67.11

$167.78

$167.78 - $167.78

$167.78

$100.67

$100.67 - $100.67

$100.67

by Kurt Hydraulics
C6167-JJ - Code 61 Flange 67 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6167-24-32-JJ Kurt
Series:	JJ Series
Shape (Orientation):	67 Degree
Ends Configuration:	1-1/2in Hose Barb, 2in Code 61 Flange
Special Properties:	Jump Size

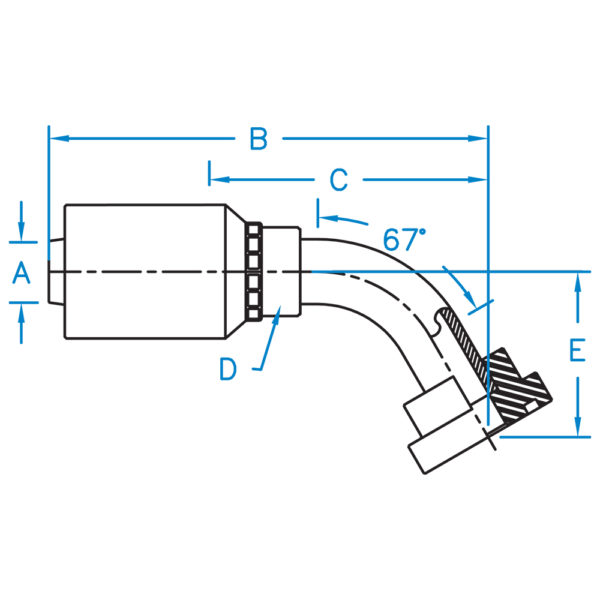

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6167-20-20-JJ	1.250	6.190	3.590	1-3/4R	2.520	1-1/4"	N/A
C6167-24-24-JJ	1.500	6.940	4.230	2-1/8R	2.913	1-1/2"	N/A
C6167-24-32-JJ	1.500	6.940	4.230	2-1/8R	2.913	1-1/2"	N/A
C6167-32-32-JJ	2.000	N/A	N/A	2-3/4R	N/A	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
