C6190-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 90° Elbow | for 2" Hose ID

C6190-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 61 Flange | 90° Elbow | for 2" Hose ID

Save $86.98 Save $86.98
$217.45
$217.45 - $217.45
$217.45
$130.47
$130.47 - $130.47
$130.47

by Kurt Hydraulics
C6190-JJ - Code 61 Flange 90 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C6190-32-32-JJ Kurt
Series: JJ Series
Shape (Orientation): 90 Degree
Ends Configuration: 2in Hose Barb, 2in Code 61 Flange

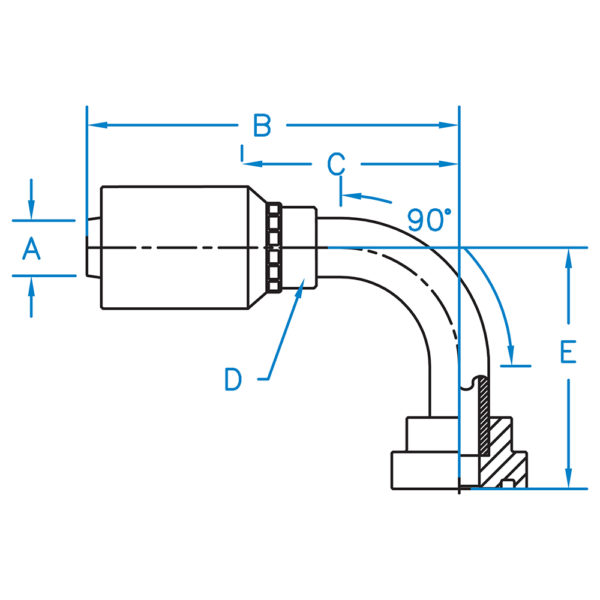

Part Number A B C D E Hose ID
(In)		 Thread
C6190-20-20-JJ 1.250 5.850 3.250 1-3/4R 2.800 1-1/4" N/A
C6190-24-24-JJ 1.500 6.490 3.780 2-1/8R 3.430 1-1/2" N/A
C6190-24-32-JJ 1.500 6.490 3.780 2-1/8R 4.090 1-1/2" N/A
C6190-32-32-JJ 2.000 8.830 5.250 2-3/4R 4.880 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
