C6230-16-16-W by Kurt Hydraulics | Code 62 Flange | 30 Degree Bent Tube | Rigid | for 1" Hose ID

C6230-16-16-W by Kurt Hydraulics | Code 62 Flange | 30 Degree Bent Tube | Rigid | for 1" Hose ID

Save $32.08 Save $32.08
$80.20
$80.20 - $80.20
$80.20
$48.12
$48.12 - $48.12
$48.12
by Kurt Hydraulics
C6230-W - Code 62 Flange 30 deg. Bent Tube Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C6230-16-16-W Kurt
Series: W Series
Shape (Orientation): 30 Degree
Ends Configuration: 1in Hose Barb, 1in Code 62 Flange
Special Properties: Rigid

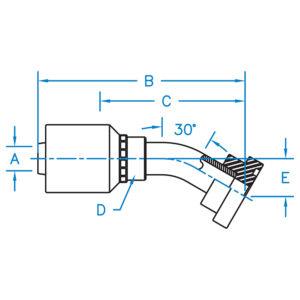

Part Number A B C D E Hose ID
(In)
C6230-12-12-W 0.750 4.77 2.89 1.0R 0.67 3/4"
C6230-12-16-W 0.750 4.890 3.100 1.0R 0.790 3/4"
C6230-16-16-W 1.000 5.160 3.050 1-5/16R 0.720 1.000"
C6230-16-20-W 1.000 5.330 3.210 1-5/16 0.820 1.000"
C6230-20-20-W 1.250 6.040 3.590 1.5/8 0.940 1-1/4"
C6230-20-24-W 1.250 6.200 3.750 1-5/8R 1.030 1-1/4"
C6230-24-24-W 1.500 7.390 4.790 2.0R 1.110 1-1/2"


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
