C6230-20-24-W by Kurt Hydraulics | Jump Size | Code 62 Flange | 30 Degree Bent Tube | Rigid | for 1-1/4" Hose ID

Save $9.88

$88.93

$88.93 - $88.93

$88.93

$79.05

$79.05 - $79.05

$79.05

by Kurt Hydraulics
C6230-W - Code 62 Flange 30 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: C6230-20-24-W Kurt
Shape (Orientation):	30 Degree
Ends Configuration:	1-1/4in Hose Barb, 1-1/2in Code 62 Flange
Special Properties:	Jump Size, Rigid

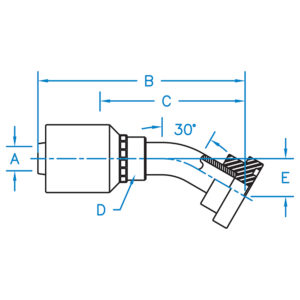

Part Number	A	B	C	D	E	Hose ID (In)
C6230-12-12-W	0.750	4.77	2.89	1.0R	0.67	3/4"
C6230-12-16-W	0.750	4.890	3.100	1.0R	0.790	3/4"
C6230-16-16-W	1.000	5.160	3.050	1-5/16R	0.720	1.000"
C6230-16-20-W	1.000	5.330	3.210	1-5/16	0.820	1.000"
C6230-20-20-W	1.250	6.040	3.590	1.5/8	0.940	1-1/4"
C6230-20-24-W	1.250	6.200	3.750	1-5/8R	1.030	1-1/4"
C6230-24-24-W	1.500	7.390	4.790	2.0R	1.110	1-1/2"

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
