C6245-24-32-JJ by Kurt Hydraulics | Jump Size | Ultra High Pressure Skive Style | Code 62 Flange | 45° Elbow | for 1-1/2" Hose ID

Save $110.40

$276.00

$276.00 - $276.00

$276.00

$165.60

$165.60 - $165.60

$165.60

by Kurt Hydraulics
C6245-JJ - Code 62 Flange 45 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6245-24-32-JJ Kurt
Series:	JJ Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/2in Hose Barb, 2in Code 62 Flange
Special Properties:	Jump Size

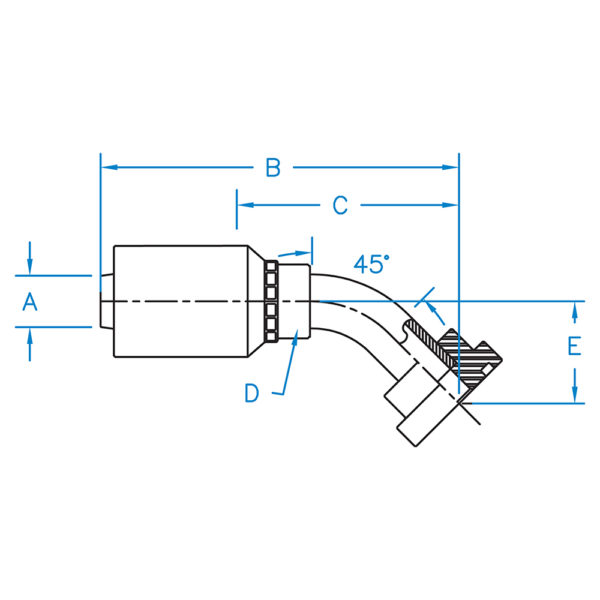

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6245-20-20-JJ	1.250	6.260	3.660	1-3/4R	1.496	1-1/4"	N/A
C6245-24-24-JJ	1.500	7.160	4.450	2-1/8R	1.732	1-1/2"	N/A
C6245-24-32-JJ	1.500	7.860	1.320	2-1/8R	2.150	1-1/2"	N/A
C6245-32-32-JJ	2.000	9.801	6.031	2-3/4R	2.737	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
