C6260-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 60° Elbow | for 2" Hose ID

Name: C6260-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 60° Elbow | for 2" Hose ID
Brand: Kurt Hydraulics
SKU: C6260-32-32-JJ Kurt
Price: 201.03 USD
Availability: InStock

Save $25.13

$226.16

$226.16 - $226.16

$226.16

$201.03

$201.03 - $201.03

$201.03

by Kurt Hydraulics
C6260-JJ - Code 62 Flange 60 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: C6260-32-32-JJ Kurt
Series:	C6260 Series
Shape (Orientation):	60 Degree
Ends Configuration:	2in Hose Barb, 2in Code 62 Flange

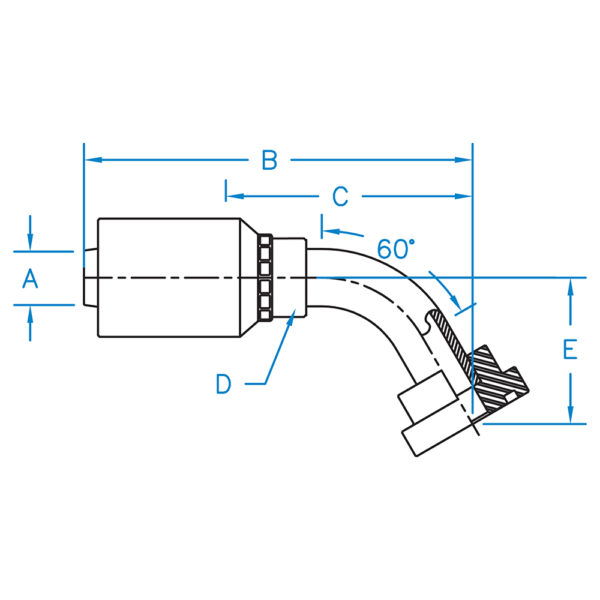

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6260-20-20-JJ	1.250	7.144	4.544	1-3/4R	2.095	1-1/4"	N/A
C6260-24-24-JJ	1.500	7.980	5.270	2-1/2R	2.592	1-1/2"	N/A
C6260-24-32-JJ	1.500	7.610	8.090	2-1/8R	2.320	1-1/2"	N/A
C6260-32-32-JJ	2.000	9.350	5.770	2-3/4R	3.120	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
