C6290-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 90° Elbow | for 2" Hose ID

Name: C6290-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 90° Elbow | for 2" Hose ID
Brand: Kurt Hydraulics
SKU: C6290-32-32-JJ Kurt
Price: 191.57 USD
Availability: InStock

Save $127.71

$319.28

$319.28 - $319.28

$319.28

$191.57

$191.57 - $191.57

$191.57

by Kurt Hydraulics
C6290-JJ - Code 62 Flange 90 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6290-32-32-JJ Kurt
Series:	JJ Series
Shape (Orientation):	90 Degree
Ends Configuration:	2in Hose Barb, 2in Code 62 Flange

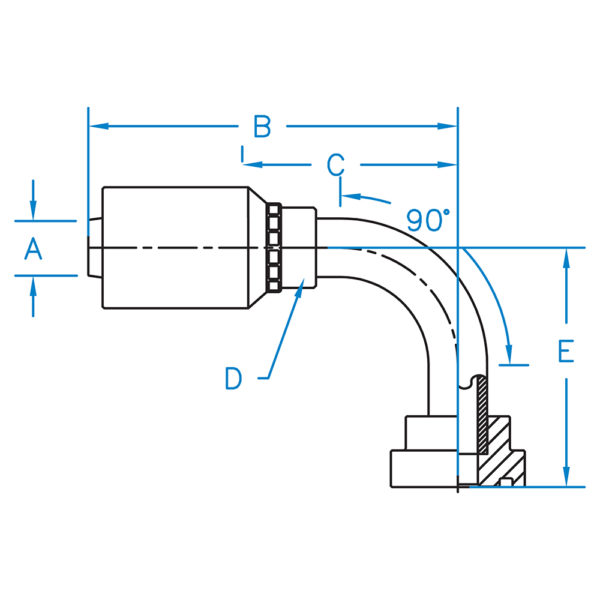

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C6290-20-20-JJ	1.250	5.851	3.251	1-3/4R	2.990	1-1/4"	N/A
C6290-20-24-JJ	N/A	N/A	N/A	N/A	N/A	N/A"	N/A
C6290-24-24-JJ	1.500	6.490	3.780	2-1/8R	3.720	1-1/2"	N/A
C6290-24-32-JJ	1.500	6.310	3.780	2-1/8R	3.530	1-1/2"	N/A
C6290-32-32-JJ	2.000	8.867	5.097	2-3/4R	6.410	2.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
