CAT-20-20-W by Kurt Hydraulics | CAT Flange | Straight | Rigid | for 1-1/4" Hose ID

Save $7.06 Save $7.06
Original price $63.57
Original price $63.57 - Original price $63.57
Original price $63.57
Current price $56.51
$56.51 - $56.51
Current price $56.51
by Kurt Hydraulics
CAT-W - Cat Flange Straight Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: CAT-20-20-W Kurt
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in CAT Flange
Special Properties: Rigid

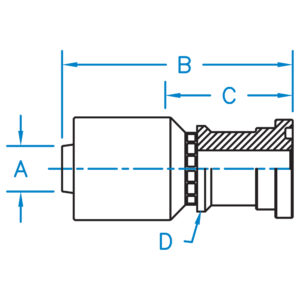

Part Number A B C D Hose ID
(In)
CAT-12-12-W 0.750 3.560 1.770 1-5/8 3/4"
CAT-12-16-W 0.750 4.150 2.360 1-7/8 3/4"
CAT-16-16-W 1.000 4.530 2.420 1-7/8 1.000"
CAT-16-20-W 1.000 4.810 2.700 2-1/8 1.000"
CAT-20-20-W 1.250 5.210 2.810 2-1/8 1-1/4"
CAT-20-24-W 1.250 5.440 2.990 2-1/2 1-1/4"
CAT-24-24-W 1.500 5.96 3.36 2-1/2 1-1/2"


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
