CAT90-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | 90° Elbow | for 3/4" Hose ID

Name: CAT90-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | 90° Elbow | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: CAT90-12-12-WHP Kurt
Price: 41.33 USD
Availability: InStock

Save $27.55

$68.88

$68.88 - $68.88

$68.88

$41.33

$41.33 - $41.33

$41.33

by Kurt Hydraulics
CAT90-WHP - CAT Flange 90 deg. Bent Tube Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: CAT90-12-12-WHP Kurt
Series:	WHP Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in CAT Flange

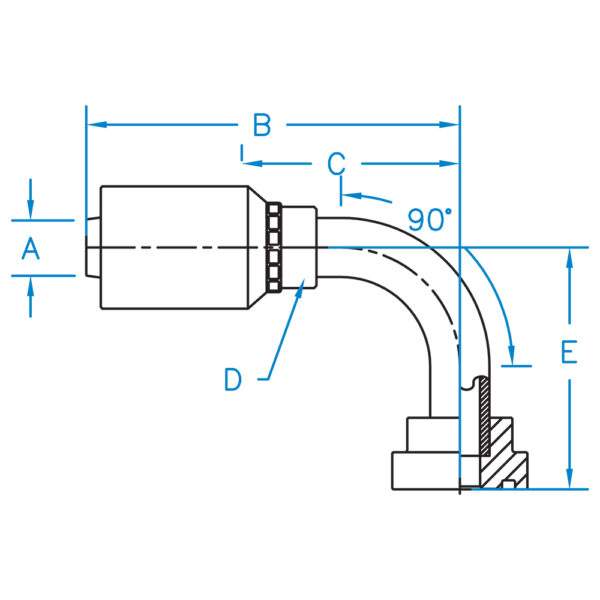

Part Number	A	B	C	D	E	Hose ID (In)	Thread
CAT90-12-12-WHP	0.750	4.762	2.332	1-3/16R	2.650	3/4"	N/A
CAT90-16-16-WHP	1.000	5.169	2.639	1-7/16R	2.900	1.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
