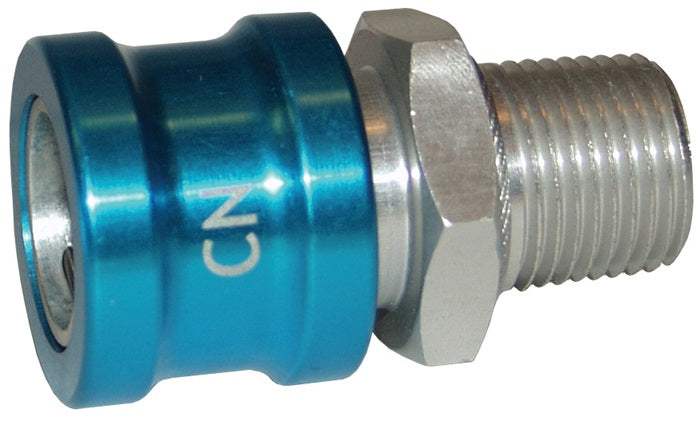

CN by Dixon Valve | FloMAX Standard-Series | Coolant Fluid Nozzle | with Ball Lock | 1/2" Male NPT | Teal/Blue | Anodized Aluminum

Save $32.65

$293.82

$293.82 - $293.82

$293.82

$261.17

$261.17 - $261.17

$261.17

Dixon Valve
FloMAX Standard-Series | Coolant Fluid Nozzle

Fully compatible and interchangeable with industry standards.

Quantity

Specifications for Variant SKU: CN Dixon
Brand:	FloMAX
Series:	CN Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT
Material(s):	Anodized Aluminum, Stainless Steel

Features:
Bright teal. Standard series connectors consist of four color-coded mating connectors. Easily recognizable labeling.
Construction:
All-metal construction with stainless steel wear components. Anodized aircraft grade aluminum non-wear components. Standard roll-pin locking mechanism. Ergonomically engineered pullbacks and caps.

Coolant Fluid Nozzles
Part Number	Description	Thread Size	Cross Over Part Numbers
Part Number	Description	Thread Size	Caterpillar®	Wiggins	FastFill
CN	Coolant Fluid Nozzle with Ball Lock	1/2" Male NPT	108-5455	EC280B8	N200
CN-P	Coolant Fluid Nozzle with Ball Lock & Plug	1/2" Male NPT	-	-	N200P
CN-PLUG	Coolant Fluid Nozzle Plug	-	108-5456	1209-8	P200

Coolant Fluid Receivers
Part Number	Description	Thread Size	Cross Over Part Numbers
Part Number	Description	Thread Size	Caterpillar®	Wiggins	FastFill
CR-S	Coolant Fluid Receiver	1/2" Male NPT	IQ5459	EC285A8	-
CR-C	Coolant Fluid Receiver with Cap	1/2" Male NPT	-	-	R200C
CR-CAP	Coolant Fluid Receiver Cap	-	5P3587	1208-8	C200

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
