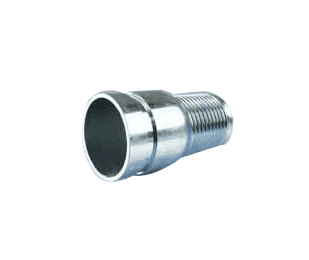

CN500V Jason Industrial Combination Hose Nipple (Victaulic-Type) - 5" Hose ID - Male NPT x Hose Shank

CN500V by Jason Industrial | Combination Hose Nipple (Victaulic-Type) | 5" Hose ID Hose Shank

Save $0.46 Save $0.46
$46.53
$46.53 - $46.53
$46.53
$46.07
$46.07 - $46.07
$46.07

Jason Industrial Inc. Couplings & Accessories - Nipples & Accessories - Combination Hose Nipples
Specifications for Variant SKU: CN500V Jason
Shape (Orientation): Straight
Ends Configuration: 5in Hose Barb, 5in Grooved End
Material(s): Plated Steel
Overview:
  • CN's are used in a variety of fluid applications. They are available in unplated steel, plated steel, polypropylene, Victaulic-type and 304 stainless steel. End (male) threads are NPT (will mate with foot valves, strainers, cam and groove part A, D etc.) and are the same size as shank. Not for use with crimp ferrule.
Features:
  • Polypropylene is Black Schedule 80.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Hose ID Unplated Steel Part Number Plated Steel Part Number 304 Stainless Steel Part Number Polypropylene Part Number Victaulic-Type Part Number
1/2" CN050 CN050P CN050S CN050PP CN050V
3/4" CN075 CN075P CN075S CN075PP CN075V
1" CN100 CN100P CN100S CN100PP CN100V
1-1/4" CN125 CN125P CN125S CN125PP CN125V
1-1/2" CN150 CN150P CN150S CN150PP CN150V
2" CN200 CN200P CN200S CN200PP CN200V
2-1/2" CN250 CN250P CN250S CN250PP CN250V
3" CN300 CN300P CN300S CN300PP CN300V
4" CN400 CN400P CN400S CN400PP CN400V
5" CN500 CN500P CN500S --- CN500V
6" CN600 CN600P CN600S --- CN600V
8" CN800 CN800P --- --- CN800V
10" CN1000 CN1000P --- --- CN1000V
12" CN1200 CN1200P --- --- ---
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
