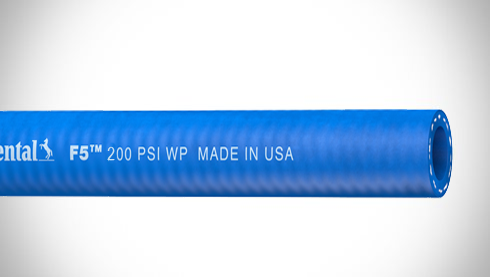

20476821 F5™ by ContiTech | Air Hose | Continental | 1.00" (1") ID | 200 PSI | Blue | 400ft

$1,585.37 - $1,585.37

$1,585.37

$1,605.39

$1,605.39 - $1,605.39

$1,605.39

Continental ContiTech F5™ Air & Multipurpose Hose

A hybrid thermoplastic hose that provides durability and flexibility, is lightweight and has a low drag resistance. F5™ is non-marking, oil-resistant and performs well under cold temperatures to -40°F (-40°C). This 300 psi hose is designed for a variety of pneumatic applications in industries such as construction and manufacturing.

Package Quantity: 400 FT

Quantity

Specifications for Variant SKU: 20476821 ContiTech \| 400 \|
Brand:	F5
Series:	F5
Hose Color(s):	Blue
Internal Diameter:	1in
Outer Diameter:	1.37in
Tubing Construction:	Thermoplastic Elastomer
Cover Construction:	Thermoplastic Elastomer

SPECIFICATIONS

Application:	Pneumatic applications in the construction and manufacturing industries.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Blue flexible TPE, ARPM Class B (Medium Oil Resistance)
Reinforcement:	Polyester yarn	Cover:	Matte blue flexible TPE, ARPM Class B (Medium Oil Resistance)
Temperature Range:	-40°F to 158°F (-40°C to 70°C)	Fittings:	N/A
Branding:	Continental ContiTech F5™ 300 psi Made in USA

Blue Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Weight		Order Code
Blue Part Number	in.	mm	in.	mm	PSI	MPa	lb./ft.	kg/m	Order Code
20463343	1/4"	6.6mm	0.50"	11.5mm	300 PSI	2.07 MPa	0.06 lbs./ft.	0.09 kg/m	54043800800002
20463342	3/8"	9.8mm	0.64"	16.2mm	300 PSI	2.07 MPa	0.10 lbs./ft.	0.16 kg/m	54043801200002
20463341	1/2"	12.7mm	0.81"	20.0mm	300 PSI	2.07 MPa	0.16 lbs./ft.	0.24 kg/m	54043801600002
20470081	3/4"	18.9mm	1.11"	28.1mm	300 PSI	2.07 MPa	0.26 lbs./ft.	0.36 kg/m	54043802400002
20476821	1"	25.4mm	1.37"	34.8mm	200 PSI	1.38 MPa	0.35 lbs./ft.	0.52 kg/m	54043803200002

Coupled Lengths
Blue Part Number	Coupling	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Weight		Order Code
Blue Part Number	Coupling	in.	mm	in.	mm	PSI	MPa	lb./ft.	kg/m	Order Code
20465480	3/8" Male NPT x 3/8" Male NPT	3/8"	9.8mm	0.64"	16.2mm	300 PSI	2.07 MPa	0.10 lbs./ft.	0.16 kg/m	54043801210014
20470808	1/4" Male NPT x 1/4" Male NPT	3/8"	9.8mm	0.64"	16.2mm	300 PSI	2.07 MPa	0.10 lbs./ft.	0.16 kg/m	54043801205014

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
