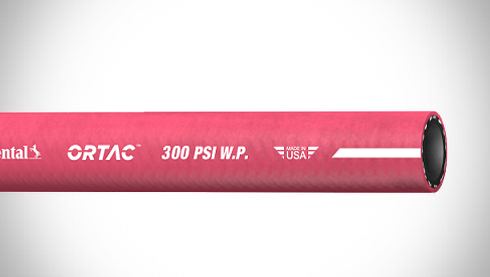

20026564 Ortac® by ContiTech | 300 Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 300 PSI | Red | 500ft

20026564 Ortac® by ContiTech | 300 Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 300 PSI | Red | 500ft

$1,547.70 - $1,547.70
$1,547.70
$1,570.67
$1,570.67 - $1,570.67
$1,570.67

Continental ContiTech Ortac® 300 Air & Multipurpose Hose

Ortac® (Oil-Resistant Tube and Cover) is Continental's most popular premium-quality multipurpose hose. Used in the most abusive industrial applications, Ortac® will handle air, oil, water, kerosene and some chemicals. The premium Carbryn™ cover offers the most superior abrasion resistance of air and multipurpose hoses. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC.

Package Quantity: 500 FT

Specifications for Variant SKU: 20026564 ContiTech | 500 |
Brand: Ortac 300
Series: Ortac 300
Hose Color(s): Red
Internal Diameter: 0.375in
Outer Diameter: 1.19in
Tubing Construction: Nitrile
Cover Construction: Synthetic Rubber

SPECIFICATIONS

Application: Air, oil, water, kerosene and some chemicals. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: Spiral synthetic yarn, 2" is braided Cover: Red Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance)
Temperature Range: -20°F to 210°F (-29°C to 99°C) Fittings: N/A
Branding: Example: 1-1/2" (38.1 mm) Ortac® 300 psi WP. Made in USA. ContiTech
Part Number Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20026560 3/16" 4.8mm 0.44" 11.8mm 300 PSI 2.07 MPa 500ft 0.07 lbs./ft. 0.10 kg/m 56905904800200
20026561 1/4" 6.4mm 0.61" 15.7mm 300 PSI 2.07 MPa 500ft 0.14 lbs./ft. 0.21 kg/m 56905906400200
20026563 5/16" 7.9mm 0.68" 17.3mm 300 PSI 2.07 MPa 500ft 0.16 lbs./ft. 0.24 kg/m 56905907900200
20026564 3/8" 9.5mm 0.73" 18.6mm 300 PSI 2.07 MPa 500ft 0.18 lbs./ft. 0.27 kg/m 56905909500200
20026568 1/2" 12.7mm 0.89" 22.6mm 300 PSI 2.07 MPa 500ft 0.25 lbs./ft. 0.37 kg/m 56905912700200
20026570 5/8" 15.9mm 1.06" 26.9mm 300 PSI 2.07 MPa 500ft 0.35 lbs./ft. 0.52 kg/m 56905915900200
20026571 3/4" 19.1mm 1.19" 30.2mm 300 PSI 2.07 MPa 500ft 0.40 lbs./ft. 0.60 kg/m 56905919100200
20026575 1" 25.4mm 1.50" 38.1mm 300 PSI 2.07 MPa 450ft 0.59 lbs./ft. 0.88 kg/m 56905925400200
20026579 1-1/4" 31.8mm 1.81" 46.0mm 300 PSI 2.07 MPa 400ft 0.76 lbs./ft. 1.13 kg/m 56905931800200
20026583 1-1/2" 38.1mm 2.08" 52.8mm 300 PSI 2.07 MPa 300ft 0.88 lbs./ft. 1.31 kg/m 56905938100200

Hose design ratio (burst pressure) 4:1.
