20025485 VariFlex™ by ContiTech | Air / Multipurpose Hose | Continental | 0.31" (5/16") ID | 200 PSI | Red | 500ft

20025485 VariFlex™ by ContiTech | Air / Multipurpose Hose | Continental | 0.31" (5/16") ID | 200 PSI | Red | 500ft

Minimum Order Quantity: 10 Reels

$900.14 - $900.14
$900.14
$913.47
$913.47 - $913.47
$913.47

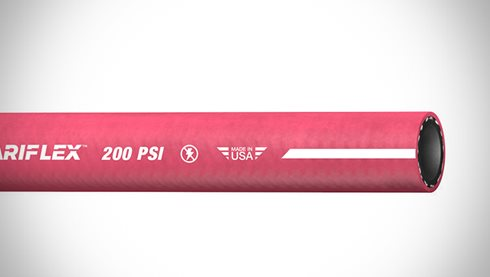

Continental ContiTech VariFlex™ 200 Air & Multipurpose Hose

A good-quality, economical general purpose hose for industrial air service, compressor lines, pneumatic tools, low-pressure spray and many other applications where the need for oil resistance is moderate. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of length of hose at 1000 volts DC.

Package Quantity: 500 FT

Specifications for Variant SKU: 20025485 ContiTech | 500 |
Brand: VariFlex 200
Series: VariFlex 200
Hose Color(s): Red
Internal Diameter: 0.31in
Outer Diameter: 0.63in
Tubing Construction: Nitrile
Cover Construction: Synthetic Rubber

SPECIFICATIONS

Application: Industrial air service, compressor lines, pneumatic tools, low-pressure spray. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: Spiral synthetic yarn (3/16"-1-1/2"), braided synthetic yarn (2") Cover: Red, blue or black Chemivic synthetic rubber, ARPM Class A (High Oil Resistance)
Temperature Range: -20°F to 210°F (-29°C to 99°C) Fittings: N/A
Branding: VariFlex™ Non-conductive 1/2" (12 7 mm) 200 psi WP Made in USA Continental ContiTech
Black
Part Number		 Red
Part Number		 Blue
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Black
Order Code		 Red
Order Code		 Blue
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20025396 20025484 20026311 1/4" 6.4mm 0.53" 13.5mm 200 PSI 1.38 MPa 500ft 0.10 lbs./ft. 0.15 kg/m 56900506400200 56900706400200 56903606400200
20025397 20025485 20026312 5/16" 7.9mm 0.63" 16.0mm 200 PSI 1.38 MPa 500ft 0.14 lbs./ft. 0.21 kg/m 56900507900200 56900707900200 56903607900200
20025399 20025487 - 3/8" 9.5mm 0.69" 17.5mm 200 PSI 1.38 MPa 500ft 0.16 lbs./ft. 0.22 kg/m 56900509500200 56900709500200 -
20025402 20025490 20147654 1/2" 12.7mm 0.84" 21.3mm 200 PSI 1.38 MPa 500ft 0.21 lbs./ft. 0.31 kg/m 56900512700200 56900712700200 56903612700200
20025403 20025492 - 5/8" 15.9mm 1.00" 25.4mm 200 PSI 1.38 MPa 500ft 0.27 lbs./ft. 0.40 kg/m 56900515900200 56900715900200 -
20025404 20025493 20026313 3/4" 19.1mm 1.13" 28.7mm 200 PSI 1.38 MPa 500ft 0.38 lbs./ft. 0.57 kg/m 56900519100200 56900719100200 56903619100200
20025405 20025495 20026314 1" 25.4mm 1.47" 37.3mm 200 PSI 1.38 MPa 450ft 0.58 lbs./ft. 0.86 kg/m 56900525400200 56900725400200 56903625400200

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
