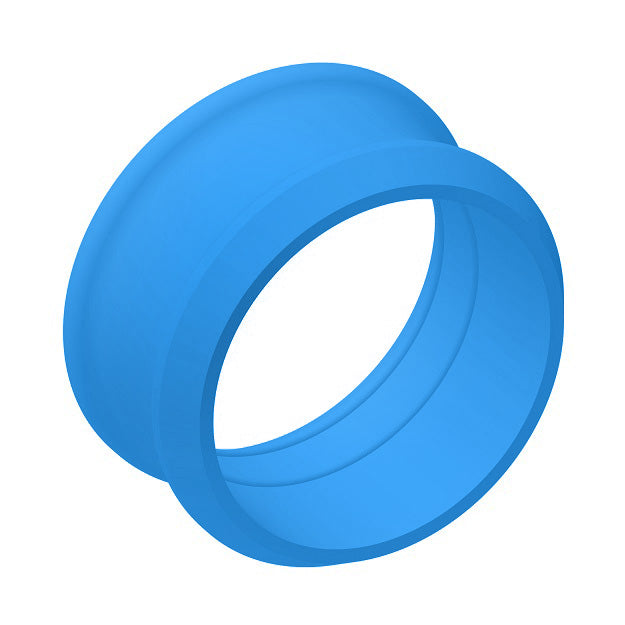

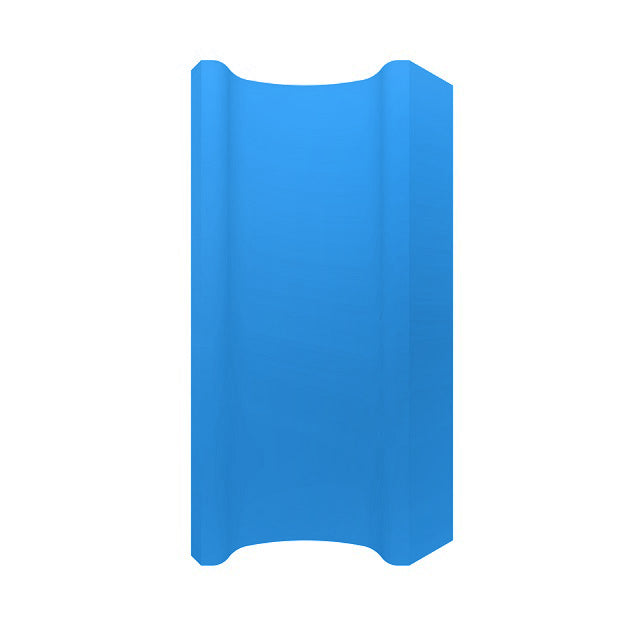

CR10FFSLB Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Sockets | 3/8" Body Size | Blue

Original price $0.00 - Original price $0.00
Original price $0.00
$4.20
$4.20 - $4.20
Current price $4.20

Hansen® by Danfoss
FF Series | MLFF Series | Flat Face ISO 16028 Interchange | Color Coding Ring

Color identification rings to help prevent crossing of lines.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CR10FFSLB Danfoss
Brand: Hansen
Series: FF Series/MLFF Series
Product Features:
  • Good thermal, chemical and weather resistance provides a great fit on the coupling and a extended life time in toughest conditions.
  • The color coded rings are easy to install by using the referenced tools.
Materials:
  • For color coded rings TPE material is used that offers excellent flexibility which allows a very good shock resistance in demanding applications
Rings for Socket/Female
Blue
Part Number
Red
Part Number
Yellow
Part Number
Green
Part Number
Body Size ISO Size Series Installation Tool
Part Number
CR10FFSLB CR10FFSRD CR10FFSYL CR10FFSDG 3/8" 10mm 10FF / 10MLFF CR10FFSP93
CR12FFSLB CR12FFSRD CR12FFSYL CR12FFSDG 1/2" 12.5mm 12FF / 12MLFF CR12FFSP93
CR16FFSLB CR16FFSRD CR16FFSYL CR16FFSDG 5/8" 16mm 16FF / 16MLFF CR16FFSP93
CR19FFSLB CR19FFSRD CR19FFSYL CR19FFSDG 3/4" 19mm 19FF / 19MLFF CR19FFSP93
Rings for Plug/Male
Blue
Part Number
Red
Part Number
Yellow
Part Number
Green
Part Number
Body Size ISO Size Series Installation Tool
Part Number
CR10FFPLB CR10FFPRD CR10FFPYL CR10FFPDG 3/8" 10mm 10FF / 10MLFF CR10FFSP93
CR12FFPLB CR12FFPRD CR12FFPYL CR12FFPDG 1/2" 12.5mm 12FF / 12MLFF CR12FFSP93
CR16FFPLB CR16FFPRD CR16FFPYL CR16FFPDG 5/8" 16mm 16FF / 16MLFF CR16FFSP93
CR19FFPLB CR19FFPRD CR19FFPYL CR19FFPDG 3/4" 19mm 19FF / 19MLFF CR19FFSP93
