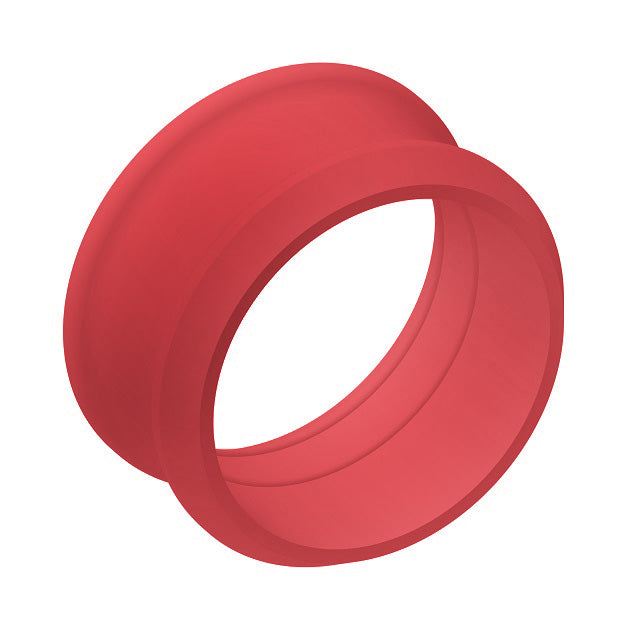

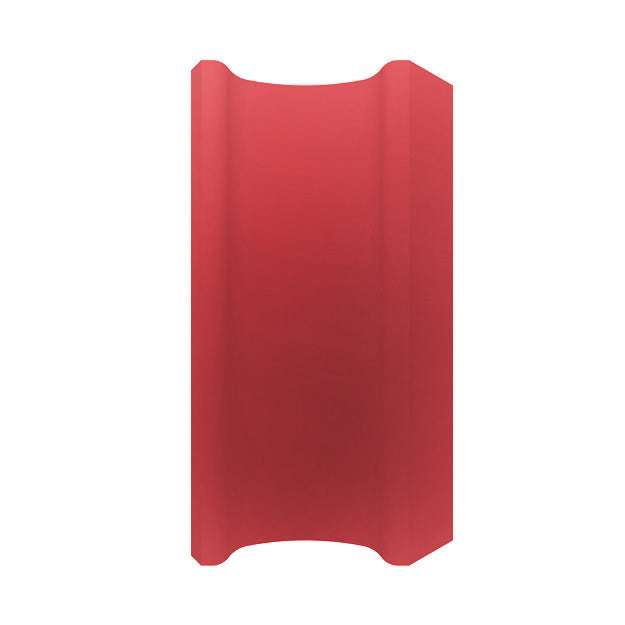

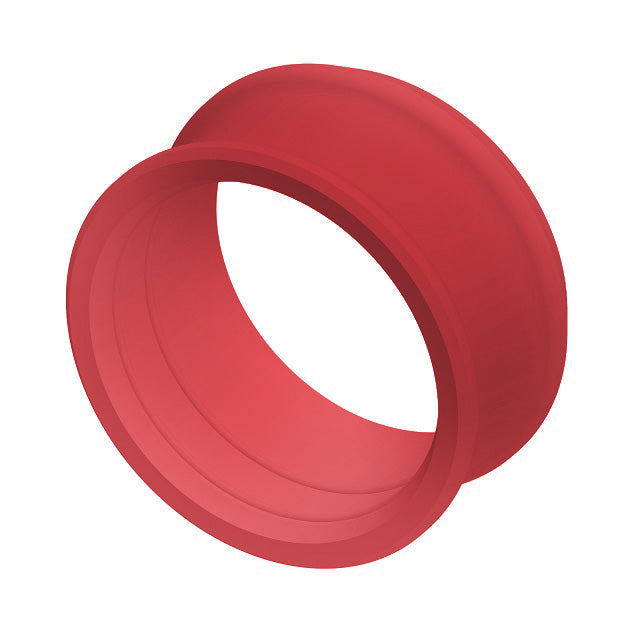

CR16FFSRD Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Sockets | 5/8" Body Size | Red

CR16FFSRD Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Sockets | 5/8" Body Size | Red

Name: CR16FFSRD Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Sockets | 5/8" Body Size | Red
Brand: Danfoss/Eaton
SKU: CR16FFSRD Danfoss
Price: 5.18 USD
Availability: InStock

$5.18 - $5.18

$5.18

$5.18 - $5.18

$5.18

Hansen® by Danfoss
FF Series | MLFF Series | Flat Face ISO 16028 Interchange | Color Coding Ring

Color identification rings to help prevent crossing of lines.

Specifications for Variant SKU: CR16FFSRD Danfoss
Brand:	Hansen
Series:	FF Series/MLFF Series

Product Features:	Good thermal, chemical and weather resistance provides a great fit on the coupling and a extended life time in toughest conditions. The color coded rings are easy to install by using the referenced tools.
Materials:	For color coded rings TPE material is used that offers excellent flexibility which allows a very good shock resistance in demanding applications

Rings for Socket/Female
Blue Part Number	Red Part Number	Yellow Part Number	Green Part Number	Body Size	ISO Size	Series	Installation Tool Part Number
CR10FFSLB	CR10FFSRD	CR10FFSYL	CR10FFSDG	3/8"	10mm	10FF / 10MLFF	CR10FFSP93
CR12FFSLB	CR12FFSRD	CR12FFSYL	CR12FFSDG	1/2"	12.5mm	12FF / 12MLFF	CR12FFSP93
CR16FFSLB	CR16FFSRD	-	CR16FFSDG	5/8"	16mm	16FF / 16MLFF	CR16FFSP93
CR19FFSLB	CR19FFSRD	CR19FFSYL	CR19FFSDG	3/4"	19mm	19FF / 19MLFF	-

Rings for Plug/Male
Blue Part Number	Red Part Number	Yellow Part Number	Green Part Number	Body Size	ISO Size	Series	Installation Tool Part Number
CR10FFPLB	CR10FFPRD	CR10FFPYL	CR10FFPDG	3/8"	10mm	10FF / 10MLFF	CR10FFSP93
CR12FFPLB	CR12FFPRD	CR12FFPYL	CR12FFPDG	1/2"	12.5mm	12FF / 12MLFF	CR12FFSP93
CR16FFPLB	CR16FFPRD	-	CR16FFPDG	5/8"	16mm	16FF / 16MLFF	CR16FFSP93
CR19FFPLB	CR19FFPRD	CR19FFPYL	CR19FFPDG	3/4"	19mm	19FF / 19MLFF	CR19FFSP93

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
