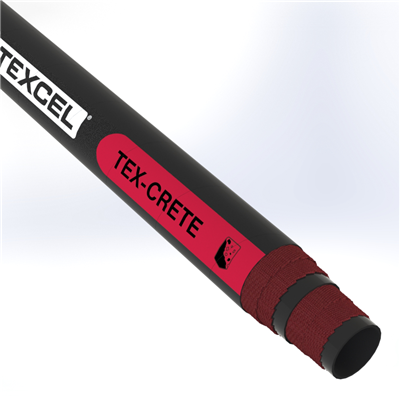

CRETE-2.5-100B by Texcel | TEX-CRETE Series | Textile Concrete Hose | 2-1/2" Hose ID | 1230 PSI | Black

$33.45 - $2,787.22

$33.45

$23.89

$23.89 - $1,990.87

$23.89

Texcel
TEX-CRETE Series | Textile Concrete Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: CRETE-2.5-100B Texcel \| 100 \|
Series:	TEX-CRETE Series
Hose Color(s):	Black
Internal Diameter:	2.50in
Outer Diameter:	3.34in
Tubing Construction:	Natural Rubber/SBR Blend
Cover Construction:	SBR

Technical Data:
Description:	Designed to provide the ultimate combination of handling ease, abuse resistance and long service life required for plaster, grout and concrete placement applications. Ideal for concrete pumping applications.	Tube:	Black, wear-resistant, GUM/SBR blend
Cover:	Black, SBR, cut and gouge-resistant	Reinforcement:	Multiple plies of high tensile tire cord
Safety Factor:	2:1 (per ASME standards)	Temperature:	-40°F to +200°F
Branding:	TEXCEL® TEX-CRETE - FABRIC CONCRETE PLACEMENT HOSE 1230 PSI (85 BAR) W.P. XXX LBS/FT (F.W.C)	Features:	Meets ASME B3.27-2009 specifications

Part Number	Hose ID	Hose OD	Working Pressure (psi/bar)	Burst Pressure (psi/bar)	Bend Radius	Lbs./Ft.
CRETE-1.0-100B	1"	1-43/64"	1230/85	2460/170	6"	0.69 lbs
CRETE-1.25-100B	1-1/4"	2"	1230/85	2460/170	8"	0.86 lbs
CRETE-1.5-100B	1-1/2"	2-12/64"	1230/85	2460/170	10"	0.92 lbs
CRETE-2.0-100B	2"	2-49/64"	1230/85	2460/170	12"	1.45 lbs
CRETE-2.5-100B	2-1/2"	3-22/64"	1230/85	2460/170	14"	1.71 lbs
CRETE-3.0-100B	3"	4"	1230/85	2460/170	15"	2.40 lbs
CRETE-3.5-100B	3-1/2"	4-31/64"	1230/85	2460/170	16"	3.07 lbs
CRETE-4.0-100B	4"	5-10/64"	1230/85	2460/170	18"	4.06 lbs
CRETE-4.5-100B	4-1/2"	5-38/64"	1230/85	2460/170	21"	4.22 lbs
CRETE-5.0-100B	5"	6-19/64"	1230/85	2460/170	24"	5.80 lbs
CRETE-6.0-100B	6"	7-21/64"	1230/85	2460/170	30"	6.80 lbs
