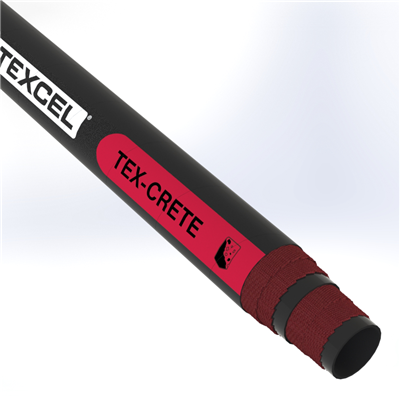

CRETE-4.0 by Texcel | TEX-CRETE Series | Textile Concrete Hose | 4" Hose ID | 1230 PSI | Black

CRETE-4.0 by Texcel | TEX-CRETE Series | Textile Concrete Hose | 4" Hose ID | 1230 PSI | Black

$67.05 - $5,587.50
$67.05
$59.60
$59.60 - $4,966.67
$59.60

Texcel
TEX-CRETE Series | Textile Concrete Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: CRETE-4.0-100B Texcel | 100 |
Series: TEX-CRETE Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 5.02in
Tubing Construction: Natural Rubber/SBR Blend
Cover Construction: SBR
Technical Data:
Description: Designed to provide the ultimate combination of handling ease, abuse resistance and long service life required for plaster, grout and concrete placement applications. Ideal for concrete pumping applications. Tube: Black, wear-resistant, GUM/SBR blend
Cover: Black, SBR, cut and gouge-resistant Reinforcement: Multiple plies of high tensile tire cord
Safety Factor: 2:1 (per ASME standards) Temperature: -40°F to +200°F
Branding: TEXCEL® TEX-CRETE - FABRIC CONCRETE PLACEMENT HOSE 1230 PSI (85 BAR) W.P. XXX LBS/FT (F.W.C) Features: Meets ASME B3.27-2009 specifications
Part Number Hose ID Hose OD Working Pressure (psi/bar) Burst Pressure (psi/bar) Bend Radius Lbs./Ft.
CRETE-1.00 1" 1-43/64" 1230/85 2460/170 6" 0.69 lbs
CRETE-1.25 1-1/4" 2" 1230/85 2460/170 8" 0.86 lbs
CRETE-1.5 1-1/2" 2-12/64" 1230/85 2460/170 10" 0.92 lbs
CRETE-2.0 2" 2-49/64" 1230/85 2460/170 12" 1.45 lbs
CRETE-2.5 2-1/2" 3-22/64" 1230/85 2460/170 14" 1.71 lbs
CRETE-3.0 3" 4" 1230/85 2460/170 15" 2.40 lbs
CRETE-3.5 3-1/2" 4-31/64" 1230/85 2460/170 16" 3.07 lbs
CRETE-4.0 4" 5-10/64" 1230/85 2460/170 18" 4.06 lbs
CRETE-4.5 4-1/2" 5-38/64" 1230/85 2460/170 21" 4.22 lbs
CRETE-5.0 5" 6-19/64" 1230/85 2460/170 24" 5.80 lbs
CRETE-6.0 6" 7-21/64" 1230/85 2460/170 30" 6.80 lbs
