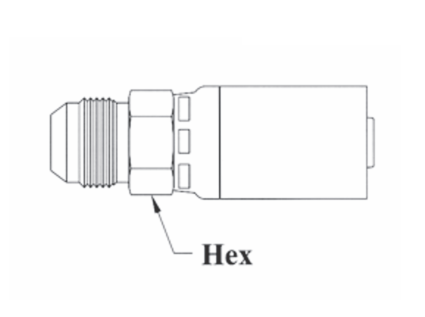

CS06-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 5/8x18 Thread SAE 45° Male Solid | Straight | Trivalent Zinc Plating | Replaces: 624V

Save $0.50 Save $0.50
Original price $4.51
Original price $4.51 - Original price $4.51
Original price $4.51
Current price $4.01
$4.01 - $4.01
Current price $4.01

Couplamatic Systems Inc.
Vari-Crimp Couplings - SAE 45° - Male Solid

Specifications for Variant SKU: CS06-6X6 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male SAE 45 Flare, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS06-6X6 3/8" 5/8x18 3/8" 3/4" 624V HY06-06MA 104HY-6-6 06U-306
CS06-12X12 3/4" 1-1/16x14 3/4" 1-1/8" 1242V HY12-12MA - 12U-312

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
