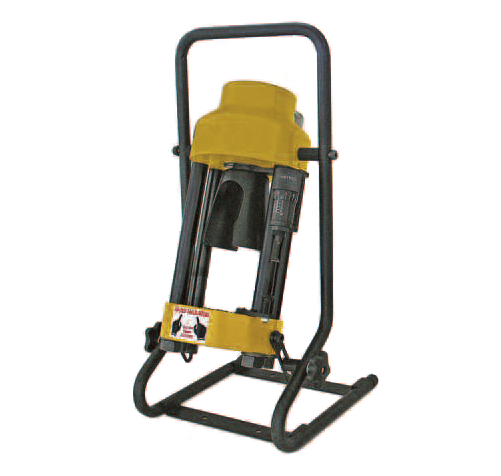

CS160P by Couplamatic | 1-1/4" Portable Crimper (No Dies Included)

CS160P by Couplamatic | 1-1/4" Portable Crimper | No Dies Included

$2,944.57 - $2,944.57
$2,944.57
$3,066.67
$3,066.67 - $3,066.67
$3,066.67

Couplamatic Inc
Hose Fabrication Equipment - Hydraulic Hose Assembly Equipment - 1-1/4" Portable Crimpers & Optional Dies
Specifications for Variant SKU: CS160P Couplamatic
CS160P: 1-1/4" Portable Crimper (No dies included)
  • Capable of crimping thru 1-1/4" Four Spiral Hose. It may be powered by a hand pump (HH11), an air/hydrualic pump (HH13), or an electric pump (99150). Its portable design and flexibility make it ideal for a multitude of applications.
  • Standard Dies: None
  • Optional Dies: 0.350, 0.450, 0.520, 0.670, 0.830, 0.950, 1.100, 1.320, 1.500, 1.730, & 1.920 (Crimp charts are available for all coupling series to assist in die selection.)
CS160PD: 1-1/4" Portable Crimper (Die set included)
  • Capable of crimping thru 1-1/4" Four Spiral Hose. This crimper comes with a complete set of dies to crimp thru 1" Four Spiral hose. Optional dies are available to crimp thru 1-1/4" Four Spiral hose.
  • Standard Dies: 0.520, 0.670, 0.830, 0.950, 1.100, 1.320, & 1.500 Crimps 1/4" thru 1" Vari-Crimp, A Series, Grip-Crimp, 4H Series, & GW Series
  • Optional Dies: See Below
Part Number Description
CS160P 1-1/4" Portable Crimper (No dies included)
CS160PD 1-1/4" Portable Crimper (Die set included)
Optional Dies
Part Number Die Coupling Series
EN98-020-09 0.350 3/16" & 1/4" T Series, 1/8" 3-Series Thermoplastic
EN98-020-0450 0.450 5/16" T Series, 3/16" 3-Series Thermoplastic
EN98-020-07 1.730 1-1/4" Vari-Crimp, 1-1/4" 4H Series
EN98-020-08 1.920 1-1/4" Grip Crimp, 1-1/4" GW Series
