CS26-6X6 Couplamatic VARI-CRIMP Coupling - JIC Seat - 90° Female Swivel - 3/8" Hose ID - 9/16x18 Thread (Old Part Number: 6160V)

CS26-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 6160V | Pack of 5

Save $5.03

$45.30

$45.30 - $45.30

$45.30

$40.27

$40.27 - $40.27

$40.27

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: CS26-6X6 Couplamatic \| 5 \|
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

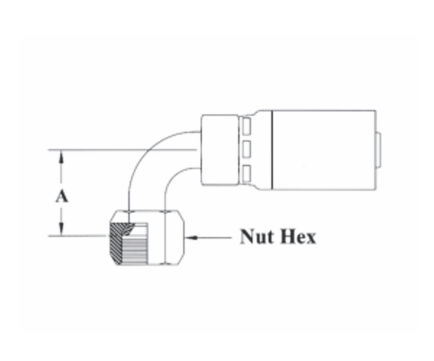

Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS26-4X4	1/4"	7/16x20	1/4"	0.81"	9/16"	4130V	HY04-04FJ90T	139HY-4-4	04U-664
CS26-4X5	1/4"	1/2x20	5/16"	0.83"	5/8"	4157V	HY04-05FJ90T	139HY-5-4	04U-665
CS26-4X6*	1/4"	9/16x18	3/8"	0.91	11/16"	4160V*	HY04-06FJ90T	139HY-6-4	04U-666
CS26-6X4	3/8"	7/16x20	1/4"	0.81	9/16"	6187V	-	-	06U-664
CS26-6X5	3/8"	1/2x20	5/16"	0.83	5/8"	6133V	-	-	-
CS26-6X6*	3/8"	9/16x18	3/8"	0.91	11/16"	6160V*	HY06-06FJ90T	139HY-6-6	06U-666
CS26-6X8	3/8"	3/4x16	1/2"	1.15"	7/8"	6163V	HY06-08FJ90T	139HY-8-6	06U-668
CS26-8X8	1/2"	3/4x16	1/2"	1.15	7/8"	8133V	HY08-08FJ90T	139HY-8-8	08U-668
CS26-8X10	1/2"	7/8x14	5/8"	1.23	1"	8160V	HY08-10FJ90T	139HY-10-8	08U-670
CS26-10X10	5/8"	7/8x14	5/8"	1.23	1"	1060V	HY10-10FJ90T	139HY-10-10	10U-670
CS26-10X12*	5/8"	1-1/16x12	3/4"	1.88	1-1/4"	1066V*	HY10-12FJ90T	139HY-12-10	10U-672
CS26-12X10	3/4"	7/8x14	5/8"	1.23	1"	12660V	HY12-10FJ90T	139HY-10-12	12U-670
CS26-12X12*	3/4"	1-1/16x12	3/4"	1.88	1-1/4"	12651V*	HY12-12FJ90T	139HY-12-12	12U-672
CS26-12X16*	3/4"	1-5/16x12	1"	2.20	1-1/2"	12666V*	-	-	-
CS26-16X16*	1"	1-5/16x12	1"	2.20	1-1/2"	16651V*	HY16-16FJ90T	139HY-16-16	16U-676
CS26-20X20	1-1/4"	1-5/8x12	1-1/4"	3.31	2"	20677V	HY20-20FJ90T	-	20U-677

* JIC Seat & Thread Only.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
