CS38-6X12 Couplamatic VARI-CRIMP Coupling - Din Heavy 24° Seat - Female Swivel - 3/8" Hose ID - M20x1.5 Thread (Old Part Number: 6C62V)

CS38-6X12 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x M20x1.5 Thread Din Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 6C62V

Save $1.08 Save $1.08
$9.75
$9.75 - $9.75
$9.75
$8.67
$8.67 - $8.67
$8.67

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Heavy 24° Seat - Female Swivel
Specifications for Variant SKU: CS38-6X12 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: S12 Female DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

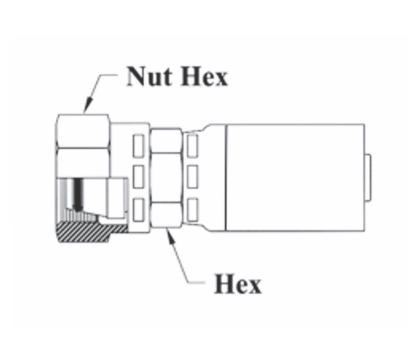

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS38-4X8 1/4" 8mm M16x1.5 9/16" 3/4" 4C58V - - 04U-58C
CS38-4X10 1/4" 10mm M18x1.5 5/8" 7/8" 4C60V - - 04U-60C
CS38-6X10 3/8" 10mm M18x1.5 3/4" 7/8" 6C60V - - 06U-60C
CS38-6X12 3/8" 12mm M20x1.5 3/4" 1" 6C62V - - 06U-62C
CS38-6X14 3/8" 14mm M22x1.5 13/16" 1-1/16" 6C64V - - 06U-64C
CS38-8X16 1/2" 16mm M24x1.5 7/8" 1-1/8" 8C66V HY08-16RO24A 1C9HY-16-8 08U-66C
CS38-10X20 5/8" 20mm M30x2.0 1-1/8" 1-1/2" 10C70V - - 10U-70C
CS38-12X20 3/4" 20mm M30x2.0 1-1/8" 1-1/2" 12C70V - - 12U-70C
CS38-12X25 3/4" 25mm M36x2.0 1-1/4" 1-5/8" 12C75V - - 12U-75C
CS38-16X30 1" 30mm M42x2.0 1-11/16" 2" 16C80V - - 16U-80C

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
