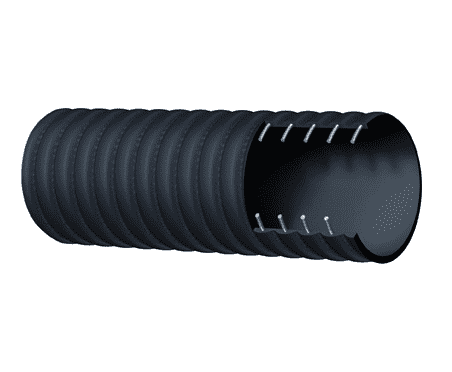

CT601AA400X100 Alfagomma by Kuriyama | Corrugated Oil Rigger/Oil Field- Frack Tank Hose | Black | 4" ID | 150 PSI | 100ft Length

Save $48.07

$1,717.03

$1,717.03 - $1,717.03

$1,717.03

$1,668.96

$1,668.96 - $1,668.96

$1,668.96

Kuriyama Alfagomma® CT601AA Series 150 PSI Corrugated Oil Rigger/Oil Field-Frack Tank Hose - Black

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: CT601AA400X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	CT601AA Series
Hose Color(s):	Black
Internal Diameter:	4in
Outer Diameter:	4.49in
Tubing Construction:	Nitrile/PVC Blend
Cover Construction:	SBR

Other Features:
Application:	Oil field vacuum tank service, for handling crude oil, frack solutions and slurries. Note: For applications up to 35% aromatics. Not for use with refined petroleum products.	Tube:	Black Nitrile - PVC blend, limited oil resistance, for oil field use.
Reinforcement:	High tensile textile cords; highly flexible steel helix wire.	Cover:	Black corrugated SBR - abrasion, ozone, limited oil resistance.
Temperature Range:	-22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Branding: ALFAGOMMA - IITALY T6C1 10 BAR (150 PSI) OIL FIELD-FRACK TANK S & D (in blue letters) Coupling Suggestions: Quick-Acting couplings or combination nipples attached with bands.

Part Number	Nominal ID		Max Rec. Working Pressure	Vacuum HG	Max Rec. Working Pressure	Standard Length	Weight
	(in.)	(mm)	PSI	(in.)	(in.)	(ft.)	(lbs./ft.)
CT601AA200X100	2"	51mm	150 PSI	30"	6"	100ft	0.86 lbs
CT601AA400X100	4"	102mm	150 PSI	27"	12"	100ft	2.39 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
