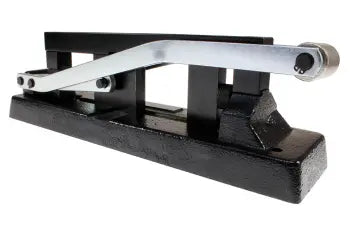

CV501 by Coilhose | Large Diameter Hose Ferrule Crimper | for 7/8" to 1-1/2" OD Hose (each die sold separately)

CV501 by Coilhose | Large Diameter Hose Ferrule Crimper | for 7/8" to 1-1/2" OD Hose (each die sold separately)

Save $21.47 Save $21.47
$193.22
$193.22 - $193.22
$193.22
$171.75
$171.75 - $171.75
$171.75
Coilhose Pneumatics - Hose Crimpers - CV501 Large Diameter Hose Crimper & Dies
Specifications for Variant SKU: CV501 Coilhose
Overview:
  • The CV501 Large Diameter Hose Crimper is designed for use with 7/8" to 1-1/2" O.D. (1/2" to 1" I.D.) hose. This crimper is sold without dies. Select the die set for the required hose size from the table shown.
  • Note: Unlike the CV500, only one die set can be loaded into the CV501 crimper at any time.
Use with:

Part Number Description
CV501 Large Diameter Hose Crimper for use with 7/8" to 1 1/2" OD (1/2" to 1" ID) hose
Large Diameter Hose Crimper Die Sets:
CV501-DS1 11/16" Hose OD
CV501-DS2 23/32" Hose OD
CV501-DS3 3/4" Hose OD
CV501-DS4 25/32" Hose OD
CV501-DS5 13/16" Hose OD
CV501-DS6 27/32" Hose OD
CV501-DS7 7/8" Hose OD
CV501-DS8 29/32" Hose OD
CV501-DS9 15/16" Hose OD
CV501-DS10 31/32" Hose OD
CV501-DS11 1" Hose OD
CV501-DS12 1-1/32" Hose OD
CV501-DS13 1-1/16" Hose OD
CV501-DS14 1-1/8" Hose OD
CV501-DS15 1-3/16" Hose OD
CV501-DS16 1-1/4" Hose OD
CV501-DS17 1-5/16" Hose OD
CV501-DS18 1-3/8" Hose OD
CV501-DS19 1-7/16" Hose OD
CV501-DS20 1-1/2" Hose OD
