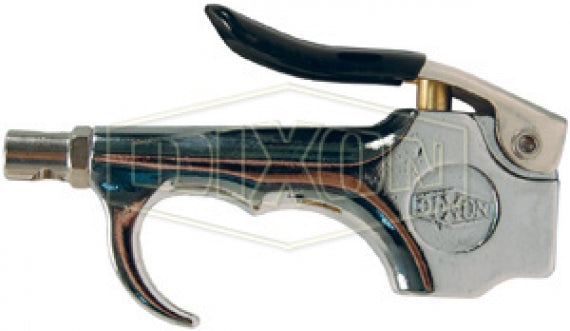

D204-30 Air Chief by Dixon Valve | Safety Blow Gun | 1/4" Female NPT inlet

D204-30 Air Chief by Dixon Valve | Safety Blow Gun | 1/4" Female NPT Inlet

Save $1.98 Save $1.98
$17.78
$17.78 - $17.78
$17.78
$15.80
$15.80 - $15.80
$15.80

Safety Blow Guns - Air Chief The air chief safety blow gun is designed to conform to OSHA Standard 1910.242 (B) permitting a maximum of 30 PSI outlet pressure when dead ended based on a maximum of 150 PSI inlet pressure as well as OSHA Standard 1910.95 regulating occupational noise level exposure. Safety glasses or shield must be worn when using any blow gun. Safety blow guns have a safety tip which prevents buildup of tip pressure in the event the outlet is obstructed or "dead ended". They comply with the requirements for OSHA 1910.242 (B) and 1910.95 when used on air lines of 150 PSI or less. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Specifications for Variant SKU: D204-30 Dixon
Features:
  • Design comfortably fits contour of the hand minimizing user fatigue.
  • Ergonomic large lever with black vinyl grip allows for easy air flow activation.
  • 1/4" female NPT inlet.
  • Recessed internal slotted screw allows easy access to valve assembly for repairs or replacement.
Construction:
  • Chrome Plated Zinc Die Cast Body.
  • Nickel Plated Steel Lever.
  • Vinyl Thumb Grip.
  • Stainless Steel Spring.
  • Brass Valve.
  • Nitrile Rubber Seals.
  • Nickel Plated Brass Tip.
  • Superior Corrosion Resistance.
Safety Notes:
  • Safety glasses or shield must be worn when using any blow gun.
  • Safety blow guns have a safety tip which prevents buildup of tip pressure in the event the outlet is obstructed or "dead ended". They comply with the requirements for OSHA 1910.242 (B) and 1910.95 when used with air lines of 150 PSI or less.
Part Number Inlet
D204-30 1/4" Female NPT
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
