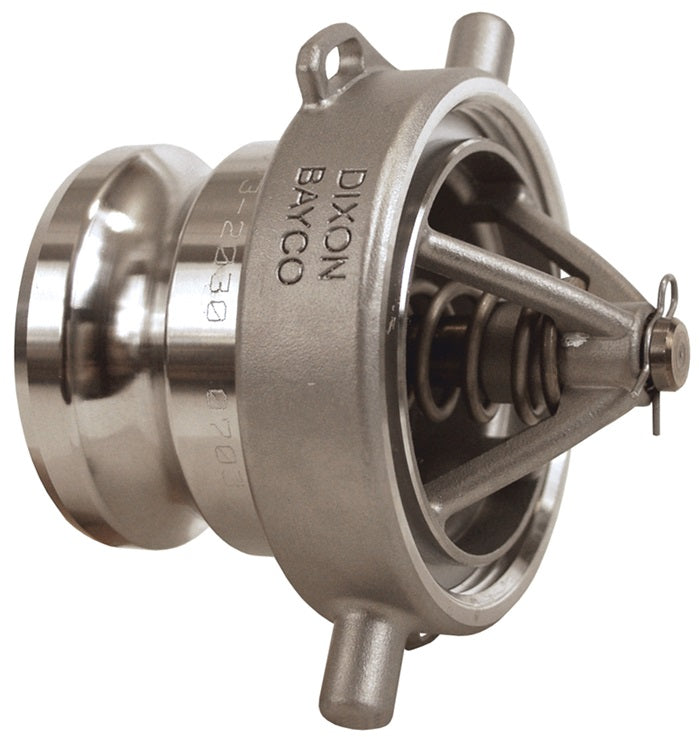

DBAV73-2030 Bayloc® by Dixon Valve | Dry Disconnect | 1-1/2" Female NPSM x 2" Vapor Adapter | PTFE Seal | Stainless Steel
DBAV73-2030 Bayloc® by Dixon Valve | Dry Disconnect | 1-1/2" Female NPSM x 2" Vapor Adapter | PTFE Seal | Stainless Steel
DBAV73-2030 Bayloc® by Dixon Valve | Dry Disconnect | 1-1/2" Female NPSM x 2" Vapor Adapter | PTFE Seal | Stainless Steel

DBAV73-2030 Bayloc® by Dixon Valve | Dry Disconnect | 1-1/2" Female NPSM x 2" Vapor Adapter | PTFE Seal | Stainless Steel

Save $325.95 Save $325.95
$814.87
$814.87 - $814.87
$814.87
$488.92
$488.92 - $488.92
$488.92

Dixon Valve
Bayloc® Dry Disconnect | Vapor Adapter x Female NPSM

Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.
Specifications for Variant SKU: DBAV73-2030 Dixon
Brand: Bayloc
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 2-1/2in Male Cam & Groove, 2in Female NPSM
Material(s): Stainless Steel
Seal Material(s): PTFE
Construction:
  • Corrosion resistance is comparable to 304 stainless steel.
Use:
  • Use with standard cam and groove dust caps sized one size larger than the dry disconnect size.
Stainless Steel
Part Number		 Flange Size Adapter Size Seal Material Maximum
PSI at
70°F (21°C)
DBAV73-2030 1-1/2" 2" PTFE 150 PSI
