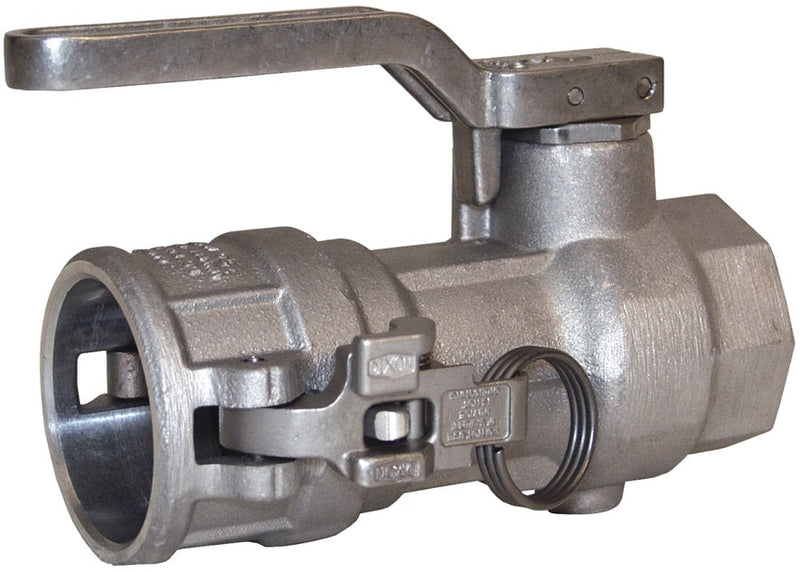

DBC77-200-GL Bayloc® by Dixon Valve | Dry Disconnect | 2" Female NPT x 2-1/2" Greaseless Coupler | PTFE Encapsulated FKM & FFKM Seal | Stainless Steel

DBC77-200-GL Bayloc® by Dixon Valve | Dry Disconnect | 2" Female NPT x 2-1/2" Greaseless Coupler | PTFE Encapsulated FKM & FFKM Seal | Stainless Steel

Save $241.01 Save $241.01
$2,345.49
$2,345.49 - $2,345.49
$2,345.49
$2,104.48
$2,104.48 - $2,104.48
$2,104.48

Dixon Valve
Bayloc® Dry Disconnect | Greaseless Coupler x Female NPT

Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.
Specifications for Variant SKU: DBC77-200-GL Dixon
Brand: Bayloc
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 2-1/2in Female Cam & Groove, 2in Female NPT
Material(s): Stainless Steel
Seal Material(s): PTFE & FFKM & Viton/FKM
Compatibility & Interchange Data:
  • Compatible with most other brands of cam and groove style dry disconnects.
  • Fully interchangeable with Kamvalok (OPW trademark) style fittings.
Use:
  • Use with DBA style adapters.
  • Use with standard cam and groove dust plug sized one size larger than the dry disconnect size.
Features:
  • Greaseless.
  • Coupler has automatic closing poppet assembly.
  • Heavy duty construction provides long service life.
  • Stainless steel handle allows product exposure to corrosive chemicals or washdown service.
  • Strong handle attachment prevents bending of crank assembly.
  • Dixon EZ Boss-Lock cam arms provide added security from accidental opening due to vibration or snagging. Very easy to use, just close the arms and they lock, to open simply lift the lever.
Construction:
  • Heavy duty stainless steel handle, crank and link.
  • Stainless steel corrosion resistance is comparable to 304 stainless steel.
Safety Notes:
  • Must be used with a DBA (Dry Break Cam & Groove) Style adapter for coupler to operate. Adapter sold separately.
Specifications:
  • Canadian registration number CRN # OH14044 all provinces.
  • Maximum operating pressure at 70°F (21°C):
    • 1-1/2" - 210 PSI
    • 2" - 150 PSI
    • 3" - 120 PSI
Stainless Steel
Part Number		 Female NPT Coupler Size Seal Material Maximum
PSI at
70°F (21°C)
DBC77-200-GL 2" 2-1/2" PTFE Encapsulated FKM & FFKM 150 PSI
DBC77-300-GL 3" 4" PTFE Encapsulated FKM & FFKM -
