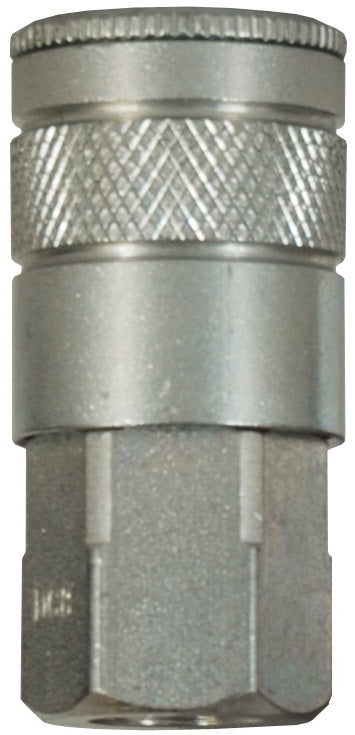

DC10 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 1/2" Female NPT x 1/2" Body Size | Steel

DC10 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Semi-Automatic | 1/2" Female NPT x 1/2" Body Size | Steel

Save $3.19 Save $3.19
$28.70
$28.70 - $28.70
$28.70
$25.51
$25.51 - $25.51
$25.51

Air Chief Industrial Interchange Quick-Connect Couplers Air Chief industrial quick-connect couplers are the popular Industrial Interchange design and will interchange with many other makes. Couplers shut-off when disconnected. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Specifications for Variant SKU: DC10 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Male Tru-Flate QD Interchange, 1/2in Female NPT
Material(s): Steel
Features:
  • Semi-automatic - pull sleeve to connect.
  • Couplers shut-off when disconnected.
  • Interchanges with many other manufacturer's designs.
Construction:
  • Steel
Specifications:
  • Interchanges with MIL Spec. MIL-C-4109F/A-A-59439 and ISO 6150-B.
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • For air service only.
Brass
Part Number		 Steel
Part Number		 Body Size Female NPT Flow Rating
at 100 PSI
DC2021 - 1/4" 1/8" Female NPT 37 CFM
DC20 - 1/4" 1/4" Female NPT 37 CFM
DC2023 - 1/4" 3/8" Female NPT 37 CFM
- DC2622 3/8" 1/4" Female NPT 70 CFM
- DC26 3/8" 3/8" Female NPT 70 CFM
- DC2624 3/8" 1/2" Female NPT 70 CFM
- DC1023 1/2" 3/8" Female NPT 150 CFM
- DC10 1/2" 1/2" Female NPT 150 CFM
- DC1026 1/2" 3/4" Female NPT 150 CFM
