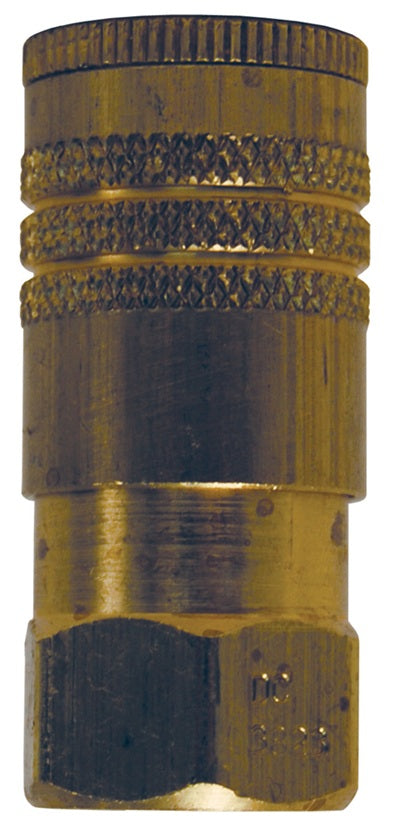

DC38 Air Chief by Dixon Valve | Pneumatic ARO Speed Interchange Coupler/Socket | 1/4" Female NPT x 1/4" Body Size | Brass

Name: DC38 Air Chief by Dixon Valve | Pneumatic ARO Speed Interchange Coupler/Socket | 1/4" Female NPT x 1/4" Body Size | Brass
Brand: Dixon
SKU: DC38 Dixon
Price: 9.23 USD
Availability: InStock

Save $1.15

$10.38

$10.38 - $10.38

$10.38

$9.23

$9.23 - $9.23

$9.23

Air Chief ARO Speed Quick-Connect Couplers On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F

Quantity

Specifications for Variant SKU: DC38 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female ARO 210 QD Interchange, 1/4in Female NPT, 1/4in Female ARO 310 QD Interchange
Material(s):	Brass

Compatibility & Interchange:
Interchanges with ARO 210 and 310 designs.
Specifications:
Pressure rating: 300 PSI at ambient temperature 70 °F (21 °C) Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
Pressure rating given at ambient temperature 70 °F (21 °C).

Pneumatic ARO Speed Interchange Coupler/Socket \| Female NPT

Part Number	Coupling Type	Material	Body Size	Female NPT	Flow Rating at 100 PSI
DC38	Socket/Female	Brass	1/4"	1/4"	37 CFM
DC3823	Socket/Female	Brass	1/4"	3/8"	37 CFM
DC36	Socket/Female	Steel	3/8"	3/8"	70 CFM

Pneumatic ARO Speed Interchange Plug \| Female NPT

Part Number	Coupling Type	Material	Body Size	Female NPT	Flow Rating at 100 PSI
DCP38	Plug/Male	Steel	1/4"	1/4"	37 CFM
DCP3823	Plug/Male	Steel	1/4"	3/8"	37 CFM
DCP36	Plug/Male	Steel	3/8"	3/8"	70 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
