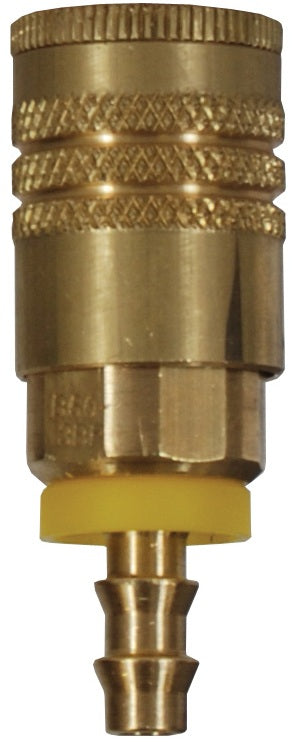

DC3844L Air Chief by Dixon Valve | Pneumatic ARO Speed Interchange Coupler/Socket | Push-On Hose Barb | 3/8" Hose ID x 1/4" Body Size | Brass

DC3844L Air Chief by Dixon Valve | Pneumatic ARO Speed Interchange Coupler/Socket | Push-On Hose Barb | 3/8" Hose ID x 1/4" Body Size | Brass

Save $1.60 Save $1.60
$14.40
$14.40 - $14.40
$14.40
$12.80
$12.80 - $12.80
$12.80

Air Chief ARO Speed Quick-Connect Couplers On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Specifications for Variant SKU: DC3844L Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Female ARO 210 QD Interchange, 3/8in Push-On Hose Barb, 1/4in Female ARO 310 QD Interchange
Material(s): Brass
Compatibility & Interchange:
  • Interchanges with ARO 210 and 310 designs.
Specifications:
  • Pressure rating: 300 PSI at ambient temperature 70 °F (21 °C)
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • Pressure rating given at ambient temperature 70 °F (21 °C).
Pneumatic ARO Speed Interchange Coupler/Socket | Push-On Hose Barb
Part Number Coupling Type Material Body Size Hose ID Flow Rating
at 100 PSI
DC3842L Socket/Female Brass 1/4" 1/4" 37 CFM
DC3844L Socket/Female Brass 1/4" 3/8" 37 CFM
Pneumatic ARO Speed Interchange Plug | Push-On Hose Barb
Part Number Coupling Type Material Body Size Hose ID Flow Rating
at 100 PSI
DCP3742L Plug/Male Steel 1/4" 1/4" 37 CFM
DCP3744L Plug/Male Steel 1/4" 3/8" 37 CFM
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
