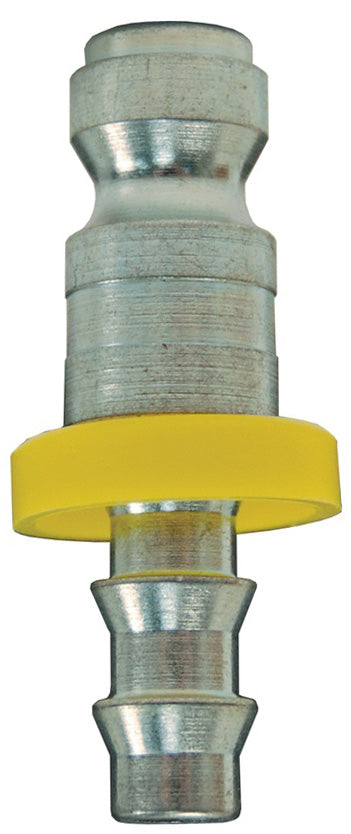

DCP144L Air Chief by Dixon Valve | Pneumatic Automotive Interchange Plug | Semi-Automatic | Push-On Hose Barb | 3/8" Hose ID x 1/4" Body Size | Steel

Save $0.56

$5.04

$5.04 - $5.04

$5.04

$4.48

$4.48 - $4.48

$4.48

Air Chief Automotive Interchange Quick-Connect Plugs Air Chief automotive quick-connect plugs will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate. There are some makes however, which do not interchange with any others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F

Quantity

Specifications for Variant SKU: DCP144L Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male Tru-Flate QD Interchange, 3/8in Hose Barb
Material(s):	Steel

Compatibility & Interchange:
Interchange with popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton, and Tru-Flate, some designs do not interchange with others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration.
Specifications:
Pressure rating: 300 PSI Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death. For air service only.

Pneumatic Automotive Interchange Plug \| Semi-Automatic \| Push-On Hose Barb

Part Number	Coupling Type	Material	Body Size	Hose ID	Flow Rating at 100 PSI
DCP142L	Plug/Male	Steel	1/4"	1/4"	37 CFM
DCP144L	Plug/Male	Steel	1/4"	3/8"	37 CFM
DCP544L	Plug/Male	Steel	3/8"	3/8"	70 CFM

Pneumatic Automotive Interchange Coupler/Socket \| Semi-Automatic \| Push-On Hose Barb

Part Number	Coupling Type	Material	Body Size	Hose ID	Flow Rating at 100 PSI
DC242L	Socket/Female	Brass	1/4"	1/4"	37 CFM
DC244L	Socket/Female	Brass	1/4"	3/8"	37 CFM
DC644L	Socket/Female	Steel	3/8"	3/8"	70 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
