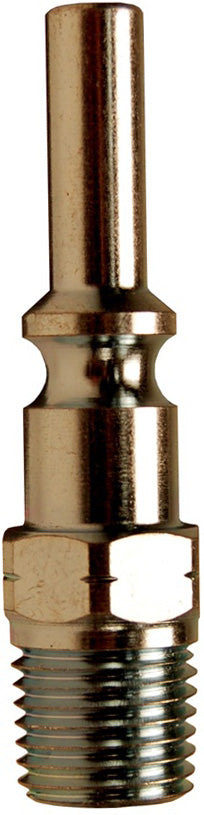

DCP27 Air Chief by Dixon Valve | Pneumatic Lincoln Interchange Plug | 1/4" Male NPT x 1/4" Body Size | Steel

Name: DCP27 Air Chief by Dixon Valve | Pneumatic Lincoln Interchange Plug | 1/4" Male NPT x 1/4" Body Size | Steel
Brand: Dixon
SKU: DCP27 Dixon
Price: 5.33 USD
Availability: InStock

Save $0.67

$6.00

$6.00 - $6.00

$6.00

$5.33

$5.33 - $5.33

$5.33

Air Chief Lincoln Interchange Series Quick-Connect Plugs On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F

Quantity

Specifications for Variant SKU: DCP27 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male Lincoln QD Interchange, 1/4in Male NPT
Material(s):	Steel

Compatibility & Interchange:
Interchangeable with the Lincoln Interchange long stem series.
Features:
Couplers shut off when disconnected Couplers are semi-automatic
Specifications:
Pressure rating: 300 PSI at ambient temperature 70 °F (21 °C). Temperature range: -40 °F to 250 °F (-40 °C to 121 °C).
Safety Notes:
Pressure rating given at ambient temperature 70 °F (21 °C).

Pneumatic Lincoln Interchange Plug

Part Number	Coupling Type	Material	Body Size	Thread	Flow Rating at 100 PSI
DCP28	Plug/Male	Steel	1/4"	1/4" Female NPT	37 CFM
DCP27	Plug/Male	Steel	1/4"	1/4" Male NPT	37 CFM

Pneumatic Lincoln Interchange Coupler/Socket

Part Number	Coupling Type	Material	Body Size	Hose ID	Flow Rating at 100 PSI
DC28	Socket/Female	Brass	1/4"	1/4" Female NPT	37 CFM
DC27	Socket/Female	Brass	1/4"	1/4" Male NPT	37 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
