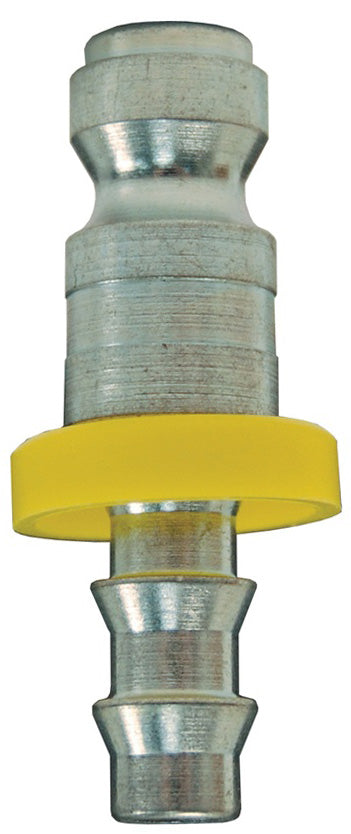

DCP544L Air Chief by Dixon Valve | Pneumatic Automotive Interchange Plug | Semi-Automatic | Push-On Hose Barb | 3/8" Hose ID x 3/8" Body Size | Steel

Save $0.44

$5.12

$5.12 - $5.12

$5.12

$4.68

$4.68 - $4.68

$4.68

Air Chief Automotive Interchange Quick-Connect Plugs Air Chief automotive quick-connect plugs will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate. There are some makes however, which do not interchange with any others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DCP544L Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male Tru-Flate QD Interchange, 3/8in Push-On Hose Barb
Material(s):	Steel

Compatibility & Interchange:
Interchange with popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton, and Tru-Flate, some designs do not interchange with others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration.
Specifications:
Pressure rating: 300 PSI Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death. For air service only.

Pneumatic Automotive Interchange Plug \| Semi-Automatic \| Push-On Hose Barb

Part Number	Coupling Type	Material	Body Size	Hose ID	Flow Rating at 100 PSI
DCP142L	Plug/Male	Steel	1/4"	1/4"	37 CFM
DCP144L	Plug/Male	Steel	1/4"	3/8"	37 CFM
DCP544L	Plug/Male	Steel	3/8"	3/8"	70 CFM

Pneumatic Automotive Interchange Coupler/Socket \| Semi-Automatic \| Push-On Hose Barb

Part Number	Coupling Type	Material	Body Size	Hose ID	Flow Rating at 100 PSI
DC242L	Socket/Female	Brass	1/4"	1/4"	37 CFM
DC244L	Socket/Female	Brass	1/4"	3/8"	37 CFM
DC644L	Socket/Female	Steel	3/8"	3/8"	70 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
