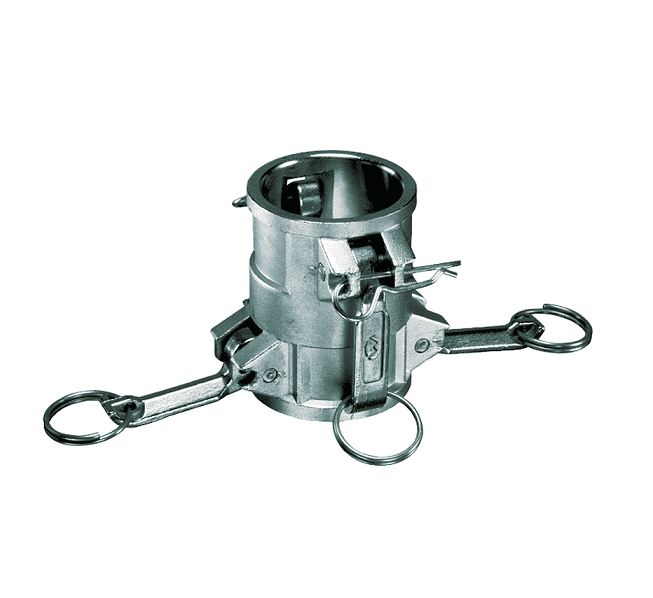

DD-SS200 by Kuriyama | Quick-Acting Special Application Coupling | 2" Coupler x 2" Coupler | 316 Stainless Steel

DD-SS200 by Kuriyama | Quick-Acting Special Application Coupling | 2" Coupler x 2" Coupler | 316 Stainless Steel

Save $32.94 Save $32.94
$115.30
$115.30 - $115.30
$115.30
$82.36
$82.36 - $82.36
$82.36

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Coupler x Coupler - 316 Stainless Steel

Specifications for Variant SKU: DD-SS200 Kuriyama
Shape (Orientation): Straight
Cam Type: Type DD (Spool Coupler)
Ends Configuration: 2in Female Cam & Groove, 2in Female Cam & Groove
Material(s): 316 Stainless Steel, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Composition test certificate is available upon request.
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
DD-SS150 1-1/2" x 1-1/2" 2.1 lbs
DD-SS200 2" x 2" 2.89 lbs
DD-SS300 3" x 3" 5.11 lbs
DD-SS400 4" x 4" 6.66 lbs
