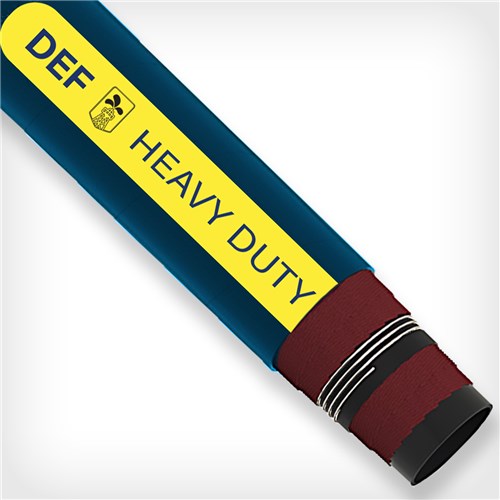

DEF-4.0-100 by Texcel | DEF TRANSFER Series | Heavy Duty Diesel Exhaust (DEF) Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Blue

$50.53 - $4,210.40

$50.53

$36.09

$36.09 - $3,007.43

$36.09

Texcel
DEF TRANSFER HOSE Series | Heavy Duty Diesel Exhaust (DEF) Hose

Quantity

Specifications for Variant SKU: DEF-4.0-100 Texcel \| 100 \|
Series:	DEF TRANSFER Series
Hose Color(s):	Blue
Internal Diameter:	4in

Texcel DEF Heavy Duty Hose
Heavy duty suction and discharge hose specifically designed for transferring DEF (Diesel Exhaust Fluid) in truck delivery and tank applications. The inner tube is constructed from peroxide-cured EPDM synthetic rubber and tested/certified to ISO-22241.
Tube: EPDM, peroxide cured, non-reactive with AdBlue purity Reinforcement: High tensile textile cord with steel helix Cover: EPDM, blue, smooth, weather and abrasion resistant Temperature Range: -22°F to +212°F (-30°C to +100°C) Applications: DEF transfer, truck and tank delivery, stationary or mobile fluid handling systems Certifications: ISO-22241 compliant

I.D.	Part Number	O.D.	Working Pressure (psi)	Vacuum (in./Hg)	Bend Radius (in.)	Lbs./Ft.
3/4"	DEF-.75-100	1-1/4"	150	29	3"	0.41
1"	DEF-1.0-100	1-27/64"	150	29	4"	0.52
1-1/4"	DEF-1.25-100	1-44/64"	150	29	5"	0.63
1-1/2"	DEF-1.5-100	1-60/64"	150	29	6"	0.75
2"	DEF-2.0-100	2-3/64"	150	29	8"	1.10
2-1/2"	DEF-2.5-100	2-63/64"	150	29	10"	1.44
3"	DEF-3.0-100	3-35/64"	150	29	12"	1.85
4"	DEF-4.0-100	4-39/64"	150	29	16"	2.73
