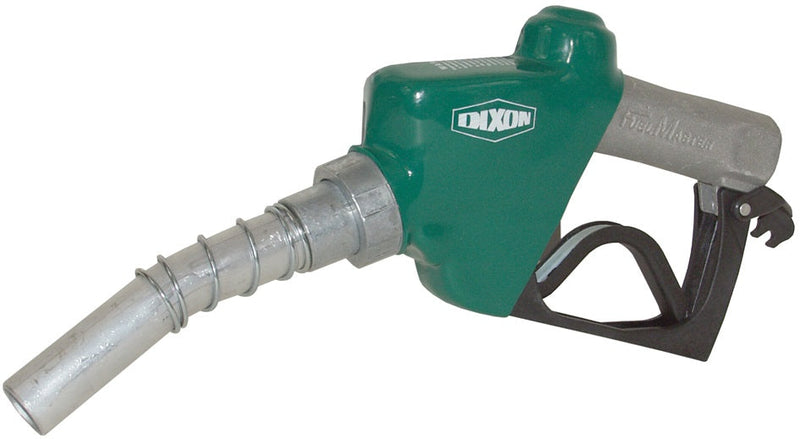

DFN100HF FuelMaster™ by Dixon Valve | Diesel Nozzle | 1" NPT Inlet | 1-3/16" Spout Outlet | Aluminum

DFN100HF FuelMaster™ by Dixon Valve | Diesel Nozzle | 1" NPT Inlet | 1-3/16" Spout Outlet | Aluminum

Save $13.84 Save $13.84
$199.49
$199.49 - $199.49
$199.49
$185.65
$185.65 - $185.65
$185.65

Dixon Valve
Tank Truck | FuelMaster™ Diesel Nozzle

For use at Truck stops and terminal operations (not designed for use with gravity flow tanks, small 12 volt or AC utility pumps, farm or consumer pumps).
Specifications for Variant SKU: DFN100HF Dixon
Brand: Bayco
Shape (Orientation): 45 Degree
Ends Configuration: 1in Female NPT
Material(s): Aluminum
Seal Material(s): Viton/FKM
Features:
  • High flow capacity.
  • Micro-touch valve provides smooth operation and exceptional flow control.
  • Roto-matic latch pin provides positive auto shut-off.
  • Pure PTFE packing eliminates stem leaks.
  • Easy to change 'locknut style' spout assembly.
  • Green scuff guard.
Construction:
  • Body and spout: aluminum.
  • Body caps: zinc.
  • Seals: FKM.
  • Poppet disk: FKM.
  • Stem packing: PTFE.
  • Hand-guard and trigger hold open clip: super tough nylon.
  • Trigger: steel.
  • Snap-on cover: plastic.
  • Scuff guard: vinyl.
Features Part Number NPT Inlet Spout
Outlet		 Approximate Flow
Rate at 20 PSI (GPM)
With trigger hold-open clip
Non-UL Listed nozzles		 DFN100HF 1" 1-3/16" 35
DFN100SF 1" 1-3/16" 45

With trigger hold-open clip
With 'no pressure, no flow' safety valve
UL Listed nozzle		 DFN100HF-NPNF 1" 1-3/16" 35
DFN100SF-NPNF 1" 1-3/16" 45

Without trigger hold-open clip
UL Listed nozzle		 DFN100HF-NC 1" 1-3/16" 35
DFN100SF-NC 1" 1-3/16" 45
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
