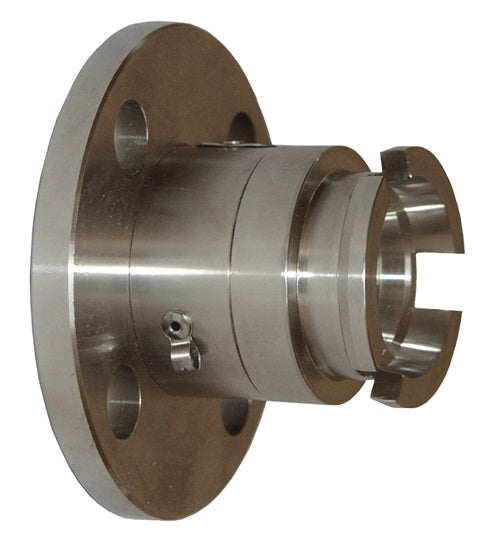

DGA100SSFL by Dixon Valve | MannTek Dry Disconnect Gas Adapter | Tank Unit | 1" 150# ASA Flange | 56mm Body Size | 316 Stainless Steel

DGA100SSFL by Dixon Valve | MannTek Dry Disconnect Gas Adapter | Tank Unit | 1" 150# ASA Flange | 56mm Body Size | 316 Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
MannTek Dry Disconnect Gas Adapter | Tank Unit | 150# ASA Flange

Dry gas couplings are designed for safe loading and discharge of bobtails or intermediate bulk delivery trucks and transfer to and from railcars.

The primary application is in the handling of LPG - Propane and Butane.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DGA100SSFL Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 56mm Male Manntek Dry Disconnect, 1in 150# Flange
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Compatibility & Interchange Data:
  • Compatible with existing dry disconnect couplings.
Features:
  • Quick and easy to connect and can be connected to a tank unit with pressures up to 225 PSI.
  • For higher pressure, couplings can easily be equipped with a pressure relief valve that dissipates trapped fluid pressure into the hose coupler without spillage.
  • Reliable- easy to use, easy to maintain and saves time.
  • Minimizes the risk of cold burns, spillage and product loss, and health risks.
  • Keeps the environment free of hazardous vapors and liquids.
Construction:
  • Stainless steel and brass / gunmetal (produced to U.S. government bronze specification G).
  • Low temperature FKM (FPM) seals.
Specifications:
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C)
  • Can be coupled to a tank unit with pressures up to 225 PSI at ambient temperature 70°F (21°C), if pressure is higher, equip couplings with pressure relief valves.
Part Number 150# Flange Body Size
DGA100SSFL 1" 56mm
DGA200SSFL 2" 71mm
DGA300SSFL 3" 119mm
