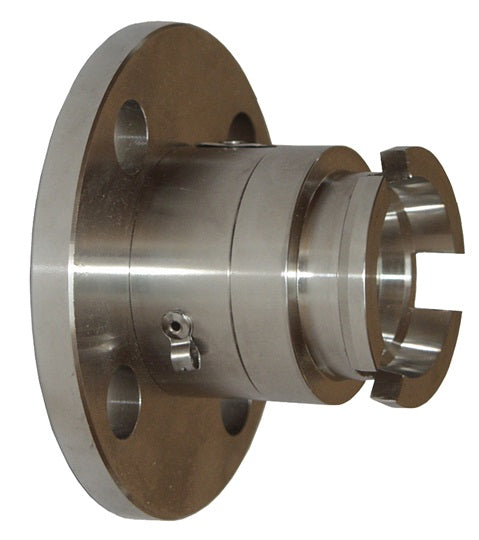

DGA200SSFL by Dixon Valve | MannTek Dry Disconnect Gas Adapter | Tank Unit | 2" 150# ASA Flange | 71mm Body Size | 316 Stainless Steel

DGA200SSFL by Dixon Valve | MannTek Dry Disconnect Gas Adapter | Tank Unit | 2" 150# ASA Flange | 71mm Body Size | 316 Stainless Steel

Save $100.85 Save $100.85
$907.68
$907.68 - $907.68
$907.68
$806.83
$806.83 - $806.83
$806.83

Dixon Valve
MannTek Dry Disconnect Gas Adapter | Tank Unit | 150# ASA Flange

Dry gas couplings are designed for safe loading and discharge of bobtails or intermediate bulk delivery trucks and transfer to and from railcars.

The primary application is in the handling of LPG - Propane and Butane.
Specifications for Variant SKU: DGA200SSFL Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 71mm Male Manntek Dry Disconnect, 2in 150# Flange
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Compatibility & Interchange Data:
  • Compatible with existing dry disconnect couplings.
Features:
  • Quick and easy to connect and can be connected to a tank unit with pressures up to 225 PSI.
  • For higher pressure, couplings can easily be equipped with a pressure relief valve that dissipates trapped fluid pressure into the hose coupler without spillage.
  • Reliable- easy to use, easy to maintain and saves time.
  • Minimizes the risk of cold burns, spillage and product loss, and health risks.
  • Keeps the environment free of hazardous vapors and liquids.
Construction:
  • Stainless steel and brass / gunmetal (produced to U.S. government bronze specification G).
  • Low temperature FKM (FPM) seals.
Specifications:
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C)
  • Can be coupled to a tank unit with pressures up to 225 PSI at ambient temperature 70°F (21°C), if pressure is higher, equip couplings with pressure relief valves.
Part Number 150# Flange Body Size
DGA100SSFL 1" 56mm
DGA200SSFL 2" 71mm
DGA300SSFL 3" 119mm
