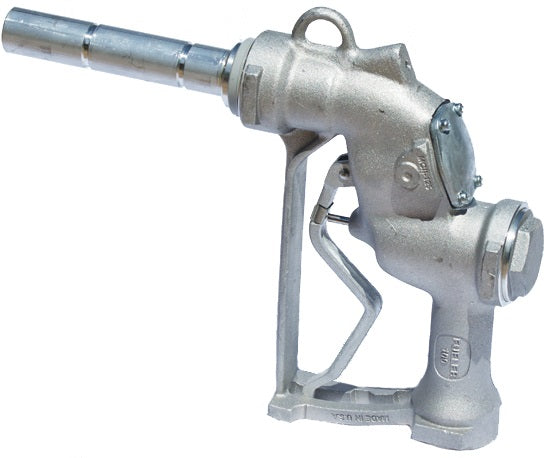

DNOG6PL by Dixon Valve | High Flow Fueler 100™ PLUS Diesel Nozzle | 1-1/2" NPT Inlet | 1-3/8" Spout Outlet | Aluminum

Name: DNOG6PL by Dixon Valve | High Flow Fueler 100™ PLUS Diesel Nozzle | 1-1/2" NPT Inlet | 1-3/8" Spout Outlet | Aluminum
Brand: Dixon
SKU: DNOG6PL Dixon
Price: 953.04 USD
Availability: InStock

Save $71.01

$1,024.05

$1,024.05 - $1,024.05

$1,024.05

$953.04

$953.04 - $953.04

$953.04

Dixon Valve
Tank Truck | High Flow Fueler 100™ PLUS Diesel Nozzle

Designed for high-volume fuel transfer.

Typical uses include high-volume truck fleet and bus terminals, fuel oil delivery, and industrial operations.

Quantity

Specifications for Variant SKU: DNOG6PL Dixon
Brand:	Bayco
Series:	High Flow Fueler 100 PLUS
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Female NPT
Material(s):	Aluminum

Features:
Higher flow rate than standard fueling nozzles. High-strength aluminum body casting for great durability. Roto-matic latch pin for smooth automatic shut-off. PTFE stem packing eliminates leaks. Dual poppers for easy high-pressure operation. Grooved spout holds nozzle in the tank. Hand guard is integrated with the body. Nylon spout lock nut does not gall, making it easy to change the spout.
Construction:
Body: high-strength aluminum. Body cap: high-strength cast aluminum. Spout: aluminum. Lever: high-strength cast aluminum. Vacuum cap: zinc. Main stem: stainless steel. Seals: FKM/Nitrile. Packing: PTFE.
Specifications:
Nozzle maximum pressure rating: 100 PSI.
Safety Note:
These nozzles are not to be used with gravity flow tanks.

Part Number	NPT Inlet	Spout Outlet	Approximate Flow Rate at 100 PSI (GPM)
DNOG5PL	1-1/4"	1-3/8"	87-90 GPM
DNOG6PL	1-1/2"	1-3/8"	87-90 GPM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
