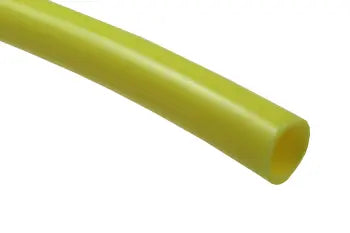

DOT532-1000-Y by Coilhose | D.O.T. Type A Tubing | 5/32" OD | 1/2" Bend Radius | Yellow | 1000ft

DOT532-1000-Y by Coilhose | D.O.T. Type A Tubing | 5/32" OD | 1/2" Bend Radius | Yellow | 1000ft

Save $39.05 Save $39.05
$351.42
$351.42 - $351.42
$351.42
$312.37
$312.37 - $312.37
$312.37
Coilhose Pneumatics - Plastic Tubing - D.O.T. Tubing
Specifications for Variant SKU: DOT532-1000-Y Coilhose
Hose Color(s): Yellow
Material(s): Nylon
Overview:
  • This Type "A" non-reinforced Air Brake tubing is ideal for connecting instrumentation or pneumatic accessories to a vehicle's air brake system. Made of Nylon 11 and heat and light-stabilized. Available in a variety of colors and in 500ft and 1,000ft lengths on easy-to-dispense reels.
Features:
  • Meets SAE specifications J844 Type "A". (Note: The "A" signifies nonreinforced D.O.T. tubing.)
  • Heat and light-stabilized.
  • Available on easy-to-dispense reels.

Temperature Range: -40° F to +200° F Max. Working Pressure: 150 PSI

Model Tube O.D. Tube I.D. Bend Radius Burst Pressure
at 75° F		 Weight Per 100 ft. Reel Length Color
DOT18-1000-K 1/8" .079" 3/8" 1000 PSI .34 lbs 1000ft Black
DOT18-1000-B 1/8" .079" 3/8" 1000 PSI .34 lbs 1000ft Blue
DOT18-1000-O 1/8" .079" 3/8" 1000 PSI .34 lbs 1000ft Orange
DOT18-1000-R 1/8" .079" 3/8" 1000 PSI .34 lbs 1000ft Red
DOT18-1000-Y 1/8" .079" 3/8" 1000 PSI .34 lbs 1000ft Yellow

DOT532-1000-G 5/32" .092" 1/2" 1200 PSI .57 lbs 1000ft Green
DOT532-1000-K 5/32" .092" 1/2" 1200 PSI .57 lbs 1000ft Black
DOT532-1000-B 5/32" .092" 1/2" 1200 PSI .57 lbs 1000ft Blue
DOT532-1000-O 5/32" .092" 1/2" 1200 PSI .57 lbs 1000ft Orange
DOT532-1000-R 5/32" .092" 1/2" 1200 PSI .57 lbs 1000ft Red
DOT532-1000-Y 5/32" .092" 1/2" 1200 PSI .57 lbs 1000ft Yellow

DOT316-1000-K 3/16" .117" 3/4" 1200 PSI .77 lbs 1000ft Black
DOT316-1000-B 3/16" .117" 3/4" 1200 PSI .77 lbs 1000ft Blue
DOT316-1000-G 3/16" .117" 3/4" 1200 PSI .77 lbs 1000ft Green
DOT316-1000-O 3/16" .117" 3/4" 1200 PSI .77 lbs 1000ft Orange
DOT316-1000-R 3/16" .117" 3/4" 1200 PSI .77 lbs 1000ft Red
DOT316-1000-Y 3/16" .117" 3/4" 1200 PSI .77 lbs 1000ft Yellow

DOT14-1000-K 1/4" .170" 1" 1200 PSI 1.21 lbs 1000ft Black
DOT14-1000-B 1/4" .170" 1" 1200 PSI 1.21 lbs 1000ft Blue
DOT14-1000-G 1/4" .170" 1" 1200 PSI 1.21 lbs 1000ft Green
DOT14-1000-O 1/4" .170" 1" 1200 PSI 1.21 lbs 1000ft Orange
DOT14-1000-R 1/4" .170" 1" 1200 PSI 1.21 lbs 1000ft Red
DOT14-1000-Y 1/4" .170" 1" 1200 PSI 1.21 lbs 1000ft Yellow

DOT516-500-K 5/16" .232" 1-1/4" 1000 PSI 1.57 lbs 500ft Black
DOT516-500-B 5/16" .232" 1-1/4" 1000 PSI 1.57 lbs 500ft Blue
DOT516-500-G 5/16" .232" 1-1/4" 1000 PSI 1.57 lbs 500ft Green
DOT516-500-O 5/16" .232" 1-1/4" 1000 PSI 1.57 lbs 500ft Orange
DOT516-500-R 5/16" .232" 1-1/4" 1000 PSI 1.57 lbs 500ft Red
DOT516-500-Y 5/16" .232" 1-1/4" 1000 PSI 1.57 lbs 500ft Yellow
