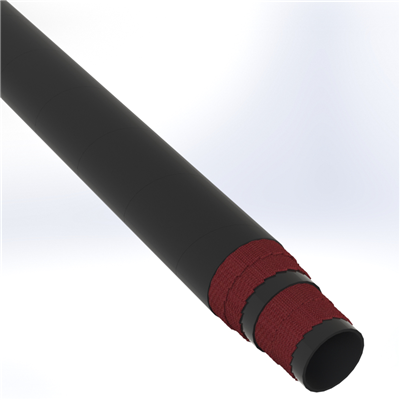

DREDGE-10.75-30N by Texcel | TEX-DREDGE Series | Dredge Sleeve | 10-3/4" Hose ID | 125 PSI | Black

$176.96 - $4,424.14

$176.96

$126.40

$126.40 - $3,160.10

$126.40

Texcel
TEX-DREDGE Series | Dredge Sleeve

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: DREDGE-10.75-30N Texcel \| 30 \|
Series:	TEX-DREDGE Series
Hose Color(s):	Black
Internal Diameter:	0.75in
Outer Diameter:	12.00in
Tubing Construction:	SBR
Cover Construction:	SBR

Technical Data:
Description:	A rugged, abrasion-resistant tube and cover for flexible connections between pipes used in dredging applications.	Tube:	Black, 3/8", abrasion-resistant SBR compound
Cover:	Black, 3/32", weather and abrasion-resistant SBR	Reinforcement:	High tensile synthetic plies
Safety Factor:	3:1	Temperature:	-20°F to +180°F

Part Number	Hose ID	Hose OD	Tube Gauge	Working Pressure (psi)	Lbs./Ft.
DREDGE-6.63-50N	6-5/8"	8-39/64"	3/8"	125 psi	6.59 lbs
DREDGE-8.63-50N	8-5/8"	10-42/64"	3/8"	125 psi	9.23 lbs
DREDGE-10.75-30N	10-3/4"	12"	3/8"	125 psi	10.98 lbs
DREDGE-12.75-30N	12-3/4"	14-3/64"	3/8"	125 psi	13.24 lbs
