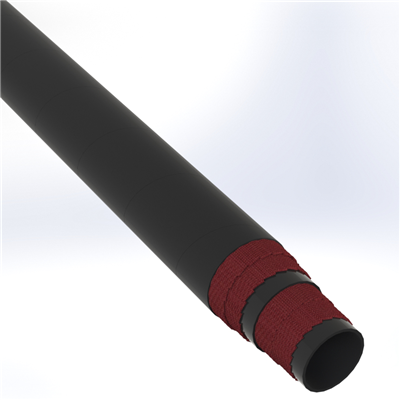

DREDGE-8.63 by Texcel | TEX-DREDGE Series | Dredge Sleeve | 8-5/8" Hose ID | 125 PSI | Black

DREDGE-8.63 by Texcel | TEX-DREDGE Series | Dredge Sleeve | 8-5/8" Hose ID | 125 PSI | Black

$106.38 - $4,432.50
$106.38
$94.56
$94.56 - $3,940.00
$94.56

Texcel
TEX-DREDGE Series | Dredge Sleeve

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: DREDGE-8.63-50N Texcel | 50 |
Series: TEX-DREDGE Series
Hose Color(s): Black
Internal Diameter: 8.625in
Outer Diameter: 10.66in
Tubing Construction: SBR
Cover Construction: SBR
Technical Data:
Description: A rugged, abrasion-resistant tube and cover for flexible connections between pipes used in dredging applications. Tube: Black, 3/8", abrasion-resistant SBR compound
Cover: Black, 3/32", weather and abrasion-resistant SBR Reinforcement: High tensile synthetic plies
Safety Factor: 3:1 Temperature: -20°F to +180°F
Part Number Hose ID Hose OD Tube Gauge Working Pressure (psi) Lbs./Ft.
DREDGE-6.63 6-5/8" 8-39/64" 3/8" 125 psi 6.59 lbs
DREDGE-8.63 8-5/8" 10-42/64" 3/8" 125 psi 9.23 lbs
DREDGE-10.75 10-3/4" 12" 3/8" 125 psi 10.98 lbs
DREDGE-12.75 12-3/4" 14-3/64" 3/8" 125 psi 13.24 lbs
