DVF-B63100LH Dixon Valve ISO Double Claw Clamp for D-TORR Vacuum Fitting - Flange Sizes: ISO63, ISO80, ISO100 - Aluminum (Pack of 4)

Name: DVF-B63100LH Dixon Valve ISO Double Claw Clamp for D-TORR Vacuum Fitting - Flange Sizes: ISO63, ISO80, ISO100 - Aluminum (Pack of 4)
Brand: Dixon
SKU: DVF-B63100LH Dixon
Price: 22.05 USD
Availability: InStock

Save $2.01

$24.06

$24.06 - $24.06

$24.06

$22.05

$22.05 - $22.05

$22.05

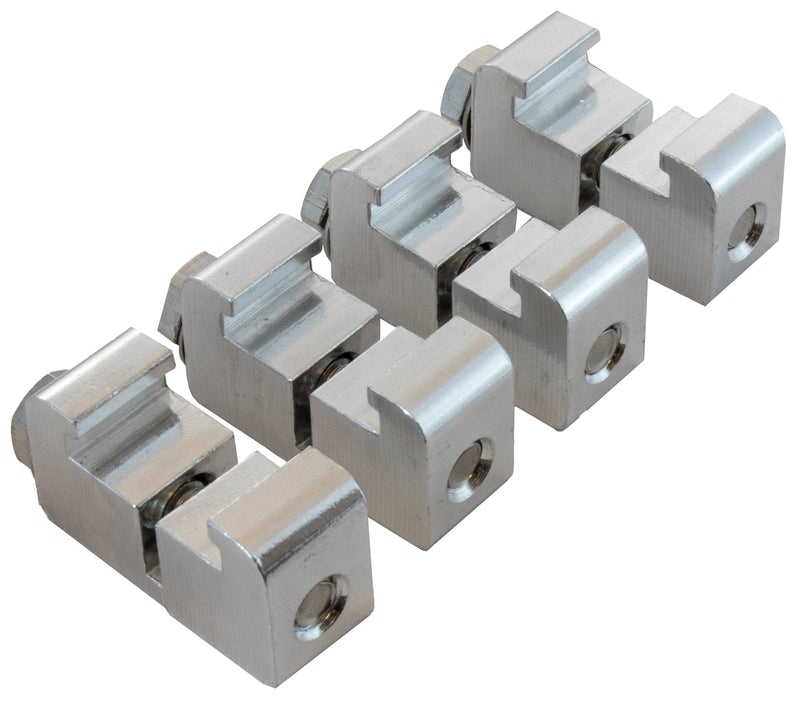

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: ISO Double Claw Clamp

Vacuum sealing for 2-1/2" - 10" OD tubing in the semiconductor industry

Package Quantity: 4 EA

Quantity

Specifications for Variant SKU: DVF-B63100LH Dixon
Material(s):	Aluminum

Features:
Each assembly contains two identical flanges and a centering ring assembly and is joined together by clamps. Centering ring keeps the flanges in line and prevents the O-ring from being pushed in by atmospheric pressure. Multiple clamps must be used to ensure a sturdy connection. ISO fittings are compatible with other manufacturers' ISO-KF-QF vacuum flanges. All fittings are IPA cleaned and bagged in a controlled environment.
Materials:
Clamps: aluminum O-ring: FKM
Specifications:
Maximum temperature: 302°F (150°C) Helium leakage testing to 1x10^-8 Torr Standards followed: ISO2681

Part Number	Flange Size	Thread Size	Qty. of Clamps Required	Dimensions
Part Number	Flange Size	Thread Size	Qty. of Clamps Required	A	B	C	D	E
DVF-B63100LH	ISO63	5/16-18"	3 - 4	0.94"	1.96"	0.92"	0.78"	0.67"
DVF-B63100LH	ISO80	5/16-18"	4 - 8	0.94"	1.96"	0.92"	0.78"	0.67"
DVF-B63100LH	ISO100	5/16-18"	4 - 8	0.94"	1.96"	0.92"	0.78"	0.67"

DVF-B160250LH	ISO160	5/16-18"	4 - 8	1.10"	1.96"	0.92"	0.78"	0.67"
DVF-B160250LH	ISO200	5/16-18"	6 - 12	1.10"	1.96"	0.92"	0.78"	0.67"
DVF-B160250LH	ISO250	5/16-18"	6 - 12	1.10"	1.96"	0.92"	0.78"	0.67"
