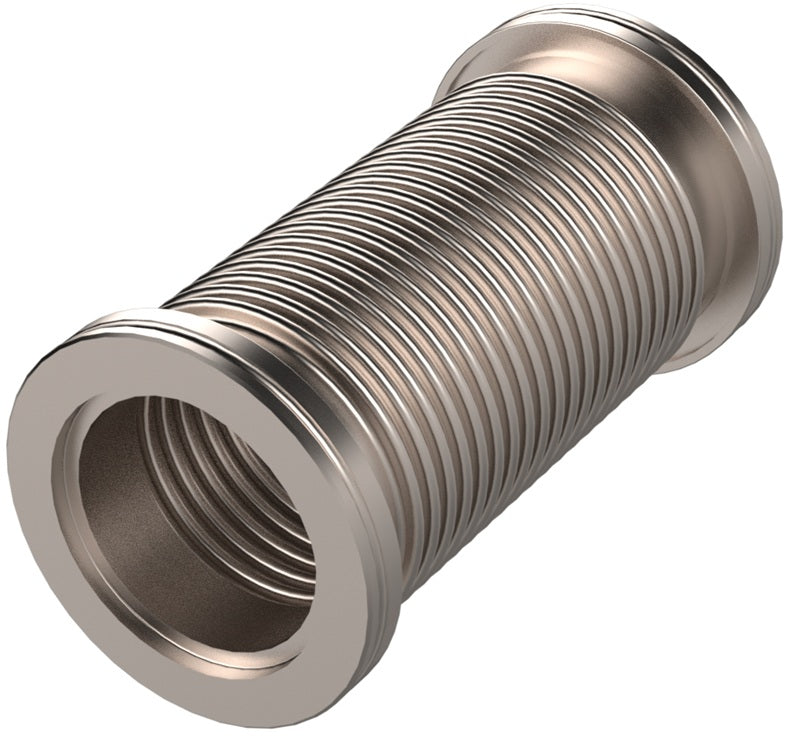

DVF-B63GG Dixon Valve ISO Flexible Bellow (Formed) for D-TORR Vacuum Fitting - Flange Size: ISO63 - 304 Stainless Steel

Name: DVF-B63GG Dixon Valve ISO Flexible Bellow (Formed) for D-TORR Vacuum Fitting - Flange Size: ISO63 - 304 Stainless Steel
Brand: Dixon
SKU: DVF-B63GG Dixon
Price: 286.72 USD
Availability: InStock

$0.00 - $0.00

$0.00

$286.72

$286.72 - $286.72

$286.72

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: ISO Flexible Bellow (Formed)

Vacuum sealing for 2-1/2" - 10" OD tubing in the semiconductor industry

Quantity

Specifications for Variant SKU: DVF-B63GG Dixon
Hose Color(s):	Metallic
Tubing Construction:	304 Stainless Steel

Features:
Each assembly contains two identical flanges and a centering ring assembly and is joined together by clamps. Centering ring keeps the flanges in line and prevents the O-ring from being pushed in by atmospheric pressure. Multiple clamps must be used to ensure a sturdy connection. ISO fittings are compatible with other manufacturers' ISO-KF-QF vacuum flanges. All fittings are IPA cleaned and bagged in a controlled environment.
Materials:
Clamps: aluminum O-ring: FKM
Specifications:
Maximum temperature: 302°F (150°C) Helium leakage testing to 1x10^-8 Torr Standards followed: ISO2681

Part Number	Flange Size	Dimensions
Part Number	Flange Size	Length	Compressed Length	A
DVF-B63GG	ISO63	7.00"	6.00"	3.74"
DVF-B80GG	ISO80	7.00"	6.00"	4.33"
DVF-B100GG	ISO100	7.00"	6.00"	5.12"
DVF-B160GG	ISO160	7.00"	6.00"	7.09"
